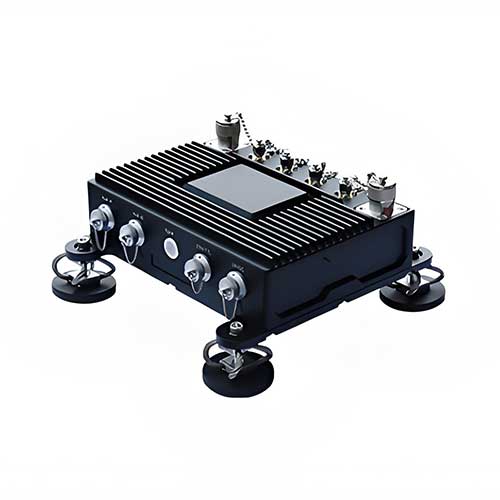

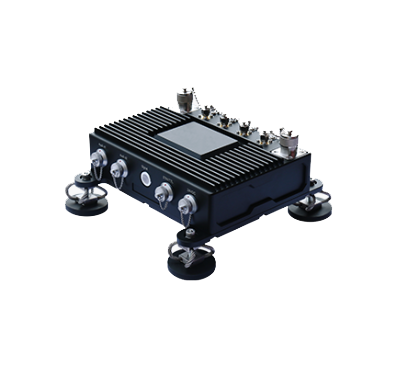

MESH Ad Hoc Network Vehicle-mounted Base Station HT-1400-5G
HT-1400-5G is a 1.4G wireless ad hoc network module that supports MIMO high-performance ad hoc networking functions, featuring centerless multi-hop networking and multi-point to multi-point broadband centerless ad hoc wireless network. It supports 2.4G WIFI, PTT voice, and HDMI high-definition input, making it ideal for on-site situation collection. It can be used in unmanned devices such as UAVs, unmanned boats, unmanned vehicles, and robots.
Category: MESH Ad Hoc Network
Product description
Product Overview
The HT-1400-5G is a 1.4 GHz wireless mesh module supporting high-performance MIMO mesh networking. It provides:
- Decentralized multi-hop networking
- Point-to-multipoint broadband wireless mesh
- Supports 2.4 GHz WiFi
- Supports PTT voice communication
- Supports HDMI high-definition input
It is ideally suited for on-site data acquisition and can be used with unmanned devices such as drones, unmanned boats, unmanned vehicles, and robots.
Applications
- Tunnel and utility corridors
- Oilfields and mines
- Fleet communication
- Public safety and firefighting
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency | 1.4 GHz |
| Networking | MIMO mesh, multi-hop, decentralized |
| WiFi | 2.4 GHz support |
| Voice | PTT (Push-to-Talk) support |
| Video Input | HDMI HD input |
| Target Devices | UAVs, unmanned boats, unmanned vehicles, robots |
| Applications | Tunnel, oilfield, fleet, public safety, firefighting |
| Item | Specification |
|---|---|
| Name | HT-1400-5G |
| Description | 1.4 GHz wireless MIMO mesh module, supports decentralized multi-hop point-to-multipoint broadband network |
| Networking Frequency | 1410 MHz – 1480 MHz @ 4W, MIMO 2×2 |
| Modulation | DSSS/CCK, BPSK/QPSK, OFDM BPSK/QPSK/16-QAM/64-QAM |
| Transmit Power | 36 dBm |
| Receive Sensitivity | -102 dBm @ 5 MHz BPSK |
| Antenna Interface | MESH N2, 5G SMA4 |
| Channel Bandwidth | 2M / 5M / 10M / 20M / 40MHz (adjustable) |
| WiFi Hotspot | 2.4 GHz |
| Effective Range | 30–50 km (elevated installation) |
| Network Management | WEB configuration, MESHCOM management platform |
| Mesh Nodes Supported | ≥50 nodes |
| Operating Temperature | -40°C ~ +65°C |
| Storage Temperature | -45°C ~ +85°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Weight | 1.62 kg |
| Dimensions | 180 × 180 × 75 mm |
| Power Consumption | Average: BW@33dBm, 16W@36dBm; Sleep: 22W |
| Interfaces | ETH1/TTL, 5G antenna4, 5.8G antenna2, handheld mic jack*2, signal indicator switch, DC 24V |
