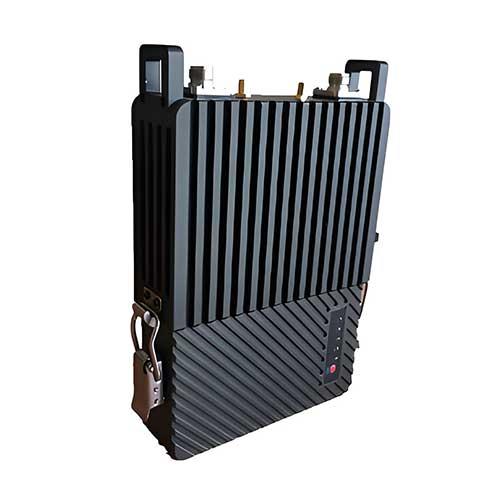

MESH Ad Hoc Network Base Station HT-3400-10W
HT3400-10W is a lightweight broadband MESH device that supports MIMO high-performance ad hoc networking functions. It features a built-in high-power linear power amplifier, a detachable battery, and an IP66 protection rating. With a centerless multi-hop networking mode, it supports 2.4G WIFI and PTT voice.
Category: MESH Ad Hoc Network
Product description

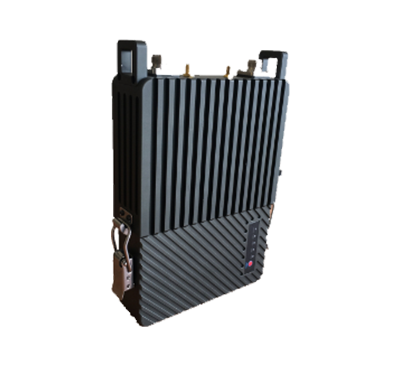

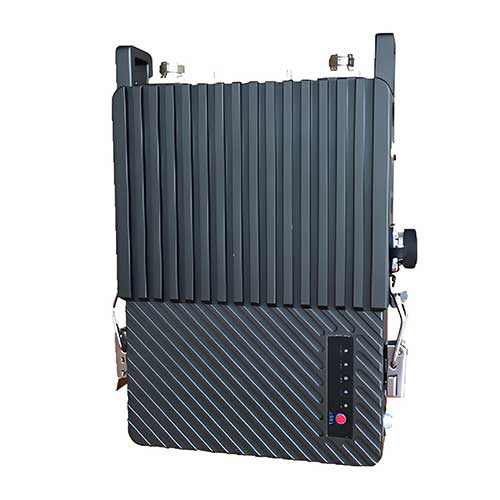

HT3400-10W Broadband MIMO Mesh Device
Product Overview
The HT3400-10W is a lightweight broadband MIMO mesh device featuring:
- High-performance MIMO mesh networking
- Built-in high-power linear amplifiers
- Detachable battery
- IP66 protection level
- Decentralized multi-hop networking
- 2.4 GHz WiFi support
- PTT voice communication
Ideal for firefighting, emergency response, anti-terror operations, and live rescue scenarios.
Key Features
- Dual-channel MIMO mesh
- Customizable frequency: 1400–1500 MHz
- Maximum throughput: 70 Mbps
- Transmission distance: >10 km
- 2.4 GHz WiFi support
- Detachable battery
- High anti-interference performance and stable operation
- Good diffraction and extended coverage
Technical Specifications
| Category | Specification |
|---|---|
| Device Interface | 100 Mbps Ethernet RJ45 |
| MESH RF Interface | N-type × 2 |
| Power Switch | Button |
| Indicators | Network quality indicator, battery status LED |
| Wireless Standard | 1.4 GHz MIMO Mesh |
| WiFi | 2.4 GHz |
| Transmit Power | 37 dBm × 2 |
| Receive Sensitivity | ≤ -95 dBm |
| Channel Bandwidth | 5 / 10 / 20 MHz |
| Transmission Distance | >10 km |
| Maximum Throughput | 70 Mbps |
| Positioning | Beidou / GPS |
| Voice | PTT, decentralized |
| 4G Support | Supports three major carriers (customizable) |
| Serial Port | USB / UART |
| HDMI Video | HDMI H.264/H.265 1080P (customizable) |
Performance Parameters
| Parameter | Specification |
|---|---|
| Networking | Mesh (self-organizing) |
| Max Hops | ≥ 8 |
| Max Nodes | ≥ 20 |
| Startup Time | ≤ 1 min |
| Connection Time | ≤ 500 ms |
| Switching Time | ≤ 100 ms |
| Transmission Encryption | AES-256 |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 260 × 210 × 65 mm (including battery) |
| Weight | 3.2 kg |
| Antenna | Standard: 5 dBi omnidirectional fiberglass antenna; Optional: 5 dBi backpack antenna with universal joint & spring buffer |
| Battery | Detachable 16.8V / 5.2Ah |
| Power Consumption | ≤ 40 W |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | 10% – 90% (non-condensing) |
| Installation | Vehicle mount or backpack |
