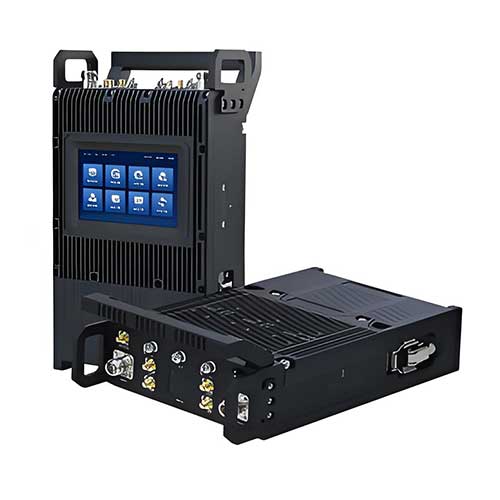

MESH Ad Hoc Network Base Station HT81-1400
The HT81-1400 is a high-power, high-performance MESH ad hoc network device. It is a high-performance wireless MESH ad hoc network base station and relay station specifically designed for application scenarios that require zero-configuration and rapid deployment of communication networks.
Product description
Product Features
Product Introduction:
The HT81-1400 is a high-power, high-performance MESH networking device designed specifically for scenarios requiring zero-configuration and rapid deployment of communication networks. It serves as a high-performance wireless MESH base station and relay station, integrating a high-linearity power amplifier of up to 20W and supporting 1400 MHz high-power MESH networking. It also supports 4G/5G, LTE private networks, wired networks, and optical fiber backhaul, and provides 2.4 GHz + 5.8 GHz standard Wi-Fi hotspots for short-range access by mobile terminals. It is widely applicable to complex and highly dynamic field networking environments such as firefighting and emergency response, armed police counterterrorism, military exercises, large equipment hoisting, archaeological expeditions, and convoy/maritime escort operations.
Key Features:
• Fully independent intellectual property rights for both hardware and software
• Dual-channel MIMO, decentralized MESH networking with strong non-line-of-sight communication capability
• Ultra-wide frequency support from 350 MHz to 6 GHz (customizable)
• Centralized management platform with Beidou/GPS-based real-time GIS topology
• Wireless networking bandwidth up to 120 Mbps
• Transmission range of 30–60 km (elevated deployment)
• Supports 2.4 GHz
• Supports HDMI input
• Supports audio and video dispatch/command
Technical Specifications
| Category | Item | Specification |
|---|---|---|
| RF Parameters | Networking Frequency | 300 MHz – 800 MHz (customizable) / 1410–1480 MHz @ 4W, MIMO 2×2 |
| Modulation | DSSS / CCK, BPSK / QPSK, OFDM BPSK / QPSK / 16-QAM / 64-QAM | |
| Transmit Power | 1420–1520 MHz @ 10W ×2; 2.4G + 5.8G @ 100 mW (standard Wi-Fi AP) | |
| Receive Sensitivity | -102 dBm @ 5 MHz BPSK | |
| RF Interfaces | N-type ×2 @ 1400–1480 MHz (350 MHz–2 GHz customizable); Wi-Fi SMA ×2; GPS SMA ×1 | |
| Channel Bandwidth | 2.5M / 5M / 10M / 20M / 40M (adjustable) | |
| Wi-Fi Hotspot | 2.4 GHz | |
| Interfaces | Fiber Port | SFP ×2 |
| Ethernet Port | Gigabit port ×2 | |
| Performance | Effective Range | 30–50 km (elevated deployment) |
| Network / Management | Configuration Methods | Web management platform, LCD, management software, mobile app |
| Mesh Nodes Supported | ≥ 50 units | |
| System Type | MESH ad-hoc networking | |
| Physical / Environmental | Operating Temperature | -30℃ to +65℃ |
| Operating Humidity | 5% – 95% (non-condensing) | |
| Storage Temperature | -45℃ to +85℃ | |
| Weight | 4.36 kg | |
| Dimensions | 298 × 168 × 70 mm | |
| Electrical | Power Supply | 16.8V |
| Power Consumption | Average 12–60W | |
| Battery | 2.5h charging, 6h operation | |
| External Interfaces | RF Interface | N-type ×2 |
| Other Ports | HDMI, PTT, charging, TTL, SIM, Ethernet switch, volume control |
