MESH Ad Hoc Network HT-1400-2W

Product Overview

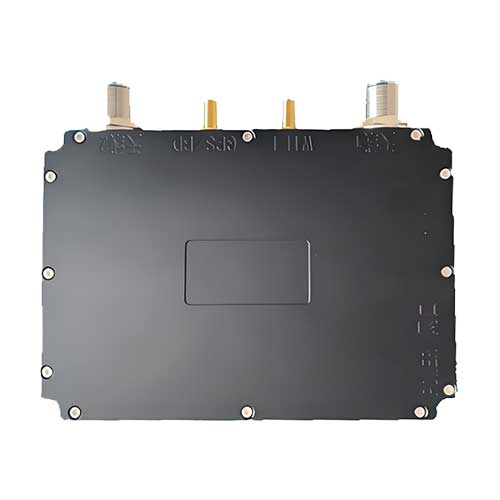

The HT-1400-2W is a dual-band portable private network wireless device developed by Beijing Zhongxun Huitong. Measuring 135 × 100 × 30 mm, it delivers high-performance private network wireless transmission with strong non-line-of-sight (NLOS) capability. The device also supports mobile phones, computers, and other terminals via 2.4 GHz Wi-Fi. Additionally, it supports Beidou/GPS positioning.

Key Features

• Network Scale: Up to 32 nodes
• Operating Frequency: 1433–1443 MHz (customizable)
• Transmit Power: 2 W
• Modulation: OFDM
• Channel Bandwidth: 5 / 10 / 20 MHz
• Data Rate: Up to 80 Mbps
• Transmission Range: Up to 30 km (air-to-ground)
• Data Interfaces: RJ45, GPS/Beidou, Wi-Fi, RF
• Special Functions: IP passthrough, Wi-Fi AP, Beidou/GPS positioning

Technical Specifications – HT-1400-2W

Frequencies & Bandwidth

• Private Network Frequency: 1433–1443 MHz (adjustable)
• Wi-Fi Frequency: 2412–2462 MHz
• Beidou/GPS Frequency: 1559–1577 MHz
• Private Network Channel Bandwidth: 5 / 10 / 20 MHz (adjustable)
• Wi-Fi Channel Bandwidth: 20 MHz

Transmit Power

• Private Network: 0.5 W / 1 W / 2 W / 8 W (adjustable)
• Wi-Fi: Up to 0.2 W

Receive Sensitivity

• Private Network: Up to -92 dBm
• Wi-Fi: Up to -90 dBm

Modulation & Data Rate

• Modulation: OFDM BPSK / QPSK / 16-QAM / 64-QAM
• Private Network Data Rate: Up to 80 Mbps
• Wi-Fi Data Rate: Up to 40 Mbps

Antenna & Interfaces

• Antenna: 2 dedicated private network antenna connectors, 1 Wi-Fi SMA antenna interface, 1 Beidou/GPS SMA antenna interface
• Ethernet Interface: 1 × 100 Mbps RJ45 port

Power & Consumption

• Voltage: DC 15–48 V
• Power Consumption: Static 3–4 W, Peak 20 W

Physical & Environmental

• Dimensions: 135 × 100 × 30 mm
• Weight: 580 g
• Operating Temperature: -20℃ to +65℃
• Storage Temperature: -40℃ to +125℃

Private Network Features

• Adjustable operating frequency
• Adjustable channel bandwidth
• Adjustable transmit power
• Supports Ad-hoc MESH networking
• Configurable ESSID / BSSID
• Supports adaptive rate and fixed rate modes
• Distance optimization supported
• Connection status display

Wi-Fi Features

• Adjustable operating frequency
• Adjustable transmit power
• Supports AP mode
• Configurable ESSID
• Adaptive rate mode supported
• WMM / 802.11e QoS support
• Distance optimization supported
• MAC address filtering
• Connection status display
• WPA / WPA2 / WEP encryption
• Hidden ESSID supported
• Network passthrough of raw Beidou / GPS location data

Management & Security

• Web-based management supported
• SSH secure management supported
• Import / export configuration
• Factory reset support
• Online firmware upgrade
