Industrial-Grade MESH Ad Hoc Network Base Station LM4000

Product Overview

The LM4000 Industrial MESH Wireless Base Station operates in the 5.8 GHz unlicensed band and is a multi-mode dual-RF wireless network device compliant with IEEE 802.11a/g/n standards, supporting MESH self-organizing networks.

The product uses a high-performance Qualcomm Atheros high-speed network processor and, based on IEEE 802.11n, supports a maximum wireless transmission rate of 300 Mbps. It uses N-type RF connectors, allowing connection of different antennas according to on-site requirements.

The LM4000 is particularly suitable for wireless broadband applications across industries such as railways, smart warehouses, logistics parks, safe cities, intelligent transportation, digital energy, government agencies, industrial and mining enterprises, construction sites, residential communities, parks and scenic areas, water conservancy, and modern agriculture.

It supports MESH, Point-to-Point (PTP), Point-to-Multipoint (PTMP) wireless applications and provides wireless features like WDS roaming and Virtual AP. It also supports Routing, DHCP, MCL, WatchDog, NTP, and Web Server functions. The LM4000 can interconnect LAN devices across multiple locations and buildings, offering high anti-interference capability, high bandwidth, and robust reliability.

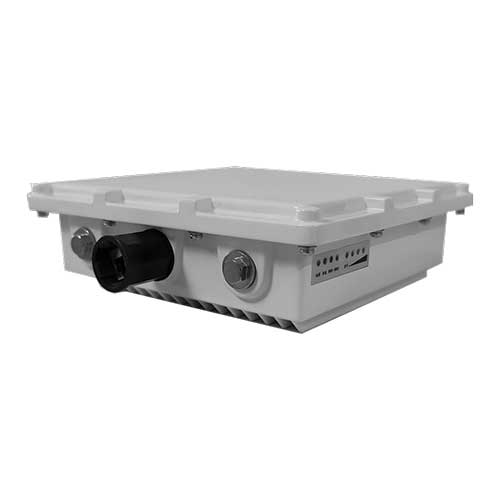

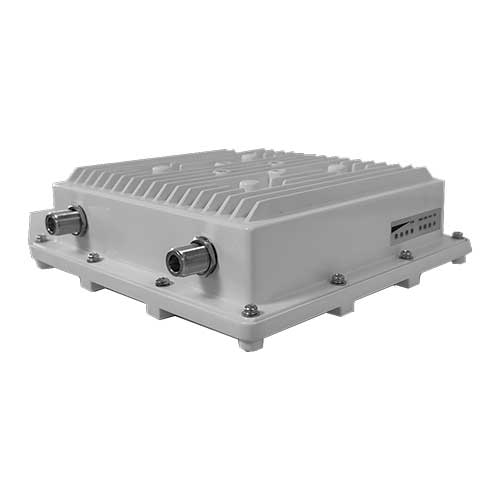

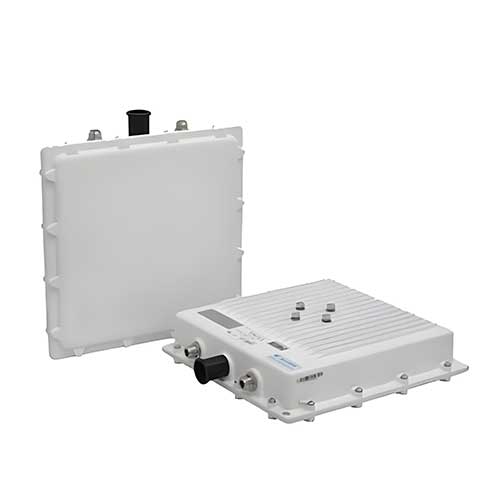

The device features an all-weather, metal die-cast aluminum enclosure that protects against wind, rain, lightning, sun, dust, and vibration, with optimized heat dissipation. It uses Power over Ethernet (PoE) for outdoor deployment, eliminating the need for dedicated feeder cables, reducing transmission loss, shortening construction time, lowering installation costs, and providing a highly cost-effective and reliable wireless network solution.

Key Advantages

• Standard Compliance: IEEE 802.11a/g/n; integrated 5.8 GHz RF card; 2 × N-type antenna connectors
• Transmission Rate: Up to 300 Mbps (IEEE 802.11n)
• Maximum Network Scale: 32 nodes, supports decentralized MESH networking
• Ethernet Interface: 1 × 100 Mbps adaptive port, PoE supported
• Channel Bandwidth Options: 10 / 20 / 40 MHz; 40 MHz provides up to 300 Mbps
• Bandwidth Management: Supports WMM (QoS), mapping priority for both wireless and wired interfaces to ensure voice and video traffic priority
• Antenna Alignment: Web interface displays received signal levels for easy installation and testing
• Anti-Interference: Beamforming technology reduces interference and minimizes impact on network speed
• Network Management: Web-based remote management or SNMP; supports configuration import/export and firmware upgrade
• PoE Power Supply: Supports PoE for easy installation and maintenance
• Multiple Features: Supports Beamforming, STBC (Space-Time Block Coding), LDPC (Low-Density Parity Check)
• Encryption: WEP, WPA, WPA2, AES, TKIP, 802.1X supported
• Automatic Channel Selection: DFS (Dynamic Frequency Selection) scans and selects the optimal channel based on the wireless environment
• Spanning Tree Protocol: Automatically selects data links, supports multiple backup paths for high-demand transmission environments
• Industrial Design: Metal die-cast aluminum, IP68-rated, dustproof, waterproof, sun-proof, shockproof, heat-dissipating; stable under high and low temperatures
• Easy Deployment: Plug-and-play AP with convenient installation components for fast deployment
• Installation Method: Pole-mounting

LM4000 Technical Specifications
