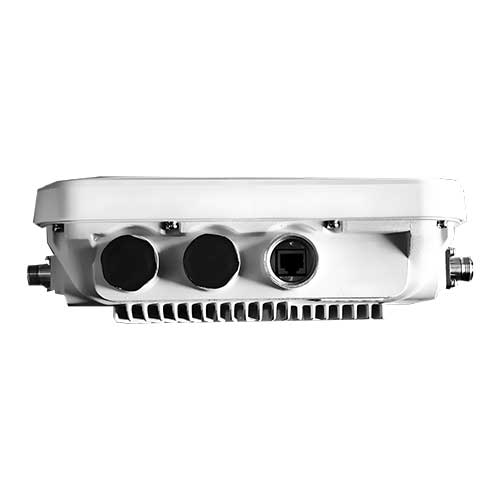

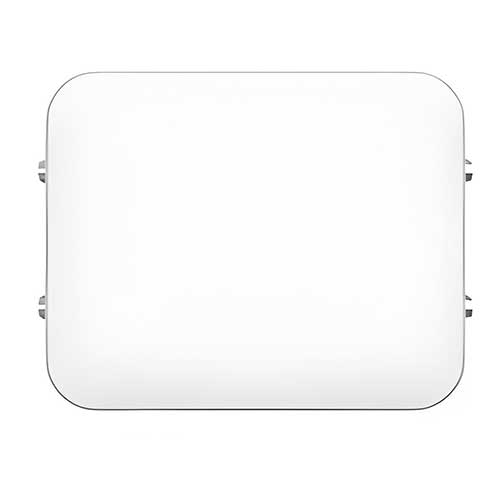

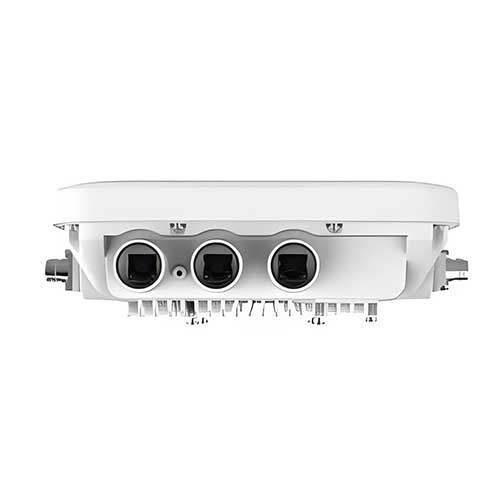

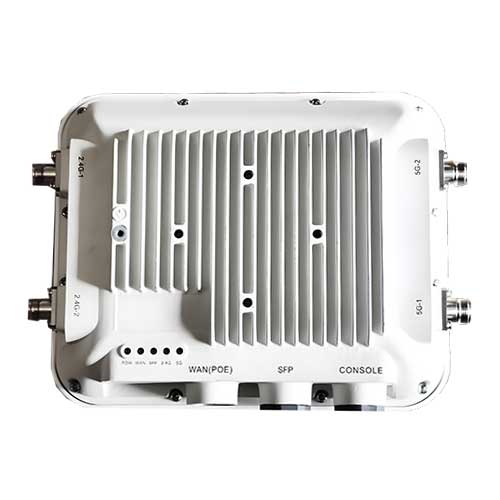

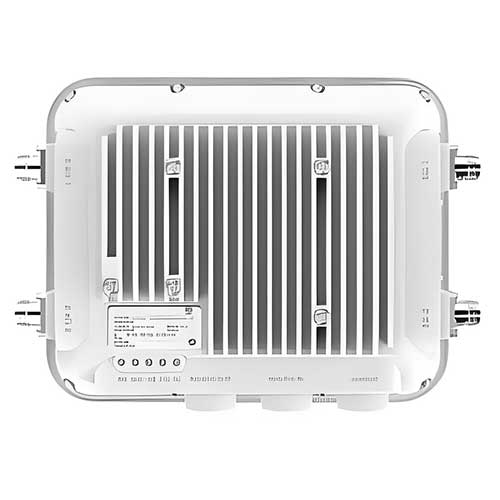

MESH Ad Hoc Network Base Station HT6000
The HT6000 is an industrial-grade MESH wireless base station operating in the unlicensed 2.4GHz and 5.8GHz frequency bands. It is a multi-mode dual-radio wireless network device compliant with the IEEE 802.11a/b/g/n/ac standards and supports MESH ad hoc networking.
Product description
Product Overview
The HT6000 Industrial MESH Wireless Base Station operates in the 2.4 GHz and 5.8 GHz unlicensed bands and is a multi-mode dual-RF wireless network device compliant with IEEE 802.11a/b/g/n/ac standards, supporting MESH self-organizing networks.
It uses a high-performance Qualcomm Atheros high-speed network processor and, based on IEEE 802.11ac, supports a maximum wireless transmission rate of 800 Mbps. The device features N-type RF connectors, allowing connection of different antennas according to on-site requirements.
The HT6000 is particularly suitable for wireless broadband applications across industries such as railways, smart warehouses, logistics parks, safe cities, intelligent transportation, digital energy, government agencies, industrial and mining enterprises, construction sites, residential communities, parks and scenic areas, water conservancy, and modern agriculture.
It supports MESH, Point-to-Point (PTP), Point-to-Multipoint (PTMP) applications and provides wireless features like WDS roaming and Virtual AP. Additional functions include Routing, DHCP, MCL, WatchDog, NTP, and Web Server. The HT6000 interconnects LAN devices across multiple locations and buildings, offering high anti-interference capability, high bandwidth, and strong reliability.
The device features an all-weather, metal die-cast aluminum enclosure with protection against wind, rain, lightning, sun, dust, and vibration, along with optimized heat dissipation. It supports Power over Ethernet (PoE) for easy outdoor installation. By eliminating the need for dedicated feeder cables, it reduces transmission loss, shortens construction time, lowers installation costs, and provides a reliable, cost-effective wireless network solution.
Key Features
- Standard Compliance: IEEE 802.11a/b/g/n/ac; integrated 5.8 GHz RF card; 4 × N-type antenna connectors
- Transmission Rate: Up to 800 Mbps (IEEE 802.11ac)
- Maximum Network Scale: 32 nodes, supports decentralized MESH networking
- Ethernet Interface: 1 × Gigabit adaptive port, PoE supported (expandable with fiber interface)
- Channel Bandwidth Options: 10 / 20 / 40 / 80 MHz; 80 MHz supports up to 800 Mbps
- Bandwidth Management: Supports WMM (QoS), maps priority for wireless and wired interfaces to ensure voice/video priority
- Antenna Alignment: Web interface displays received signal levels for easy installation/testing
- Anti-Interference: Beamforming technology minimizes interference and maintains network speed
- Network Management: Web-based remote management or SNMP; supports configuration import/export and firmware upgrade
- PoE Power Supply: Supports PoE for simplified installation and maintenance
- Advanced Features: Beamforming, STBC (Space-Time Block Coding), LDPC (Low-Density Parity Check)
- Encryption: WEP, WPA, WPA2, AES, TKIP, 802.1X supported
- Automatic Channel Selection: DFS (Dynamic Frequency Selection) scans and selects optimal channel based on wireless environment
- Spanning Tree Protocol: Automatically selects data links, supports multiple backup paths for high-demand transmission environments
- Industrial Design: Metal die-cast aluminum, IP68-rated, dustproof, waterproof, sun-proof, shockproof, heat-dissipating; stable under high/low temperatures
- Easy Deployment: Plug-and-play AP with convenient installation components for fast deployment
- Installation Method: Pole-mounting
