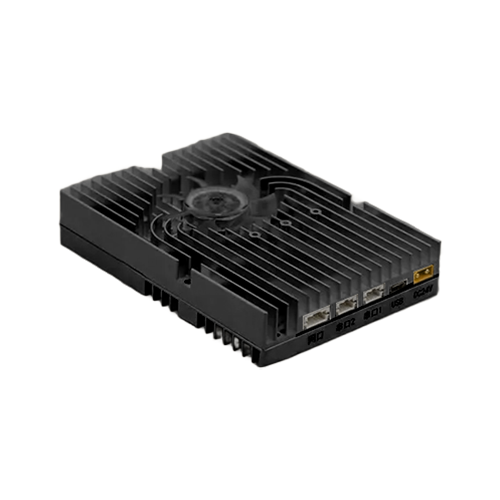

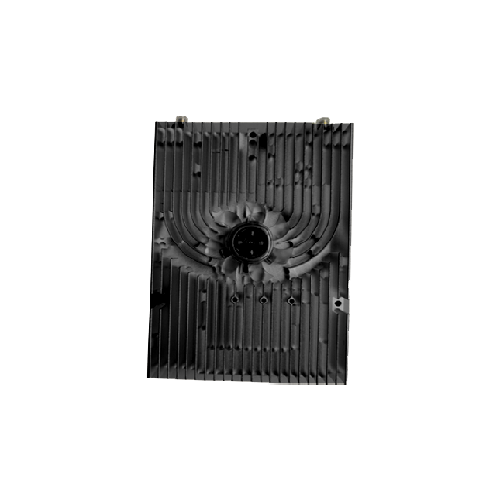

Communication Module HT-SDR-1400-40
HT-SDR-1400-40 is independently developed by Zhongxun Huitong Technology. It adopts a Software Defined Radio (SDR) architecture to realize MESH networking, and can be used for different distances when matched with power amplifiers of different powers.
Product description
Product Features
The HT-SDR-1400-40, independently developed by HTTEC Wireless Technology, adopts a Software Defined Radio (SDR) architecture to implement MESH networking. By pairing with power amplifiers of different ratings, it can be adapted for various transmission distances.
- Supports MESH networking
- Maximum bandwidth: 20 MHz
- Maximum throughput: 47 Mbps
- Supports intelligent frequency selection
- Supports AES256 encryption
- Supports extended-range mode
Features
- Supports MESH networking
- Supports multiple maximum output power versions: 30dBm, 36dBm, 40dBm, 46dBm
- Supports bandwidth configurations: 5MHz, 10MHz, 20MHz
- Supports 1.4GHz frequency band (customized products)
- Maximum transmission distance up to 500 km
- Supports automatic frequency control
- Provides 2 Ethernet ports
- Provides 3 serial ports: 2 RS232 levels, 1 TTL 3.3V level
Applications
- Unmanned system MESH communication
- Long-range maritime wireless transmission
- Point-to-multipoint medium-distance communication
- Power and hydrology line inspection
- Firefighting and security emergency communication
Typical Ratings
| Model | Supply Voltage (V) | Max Power Consumption (W) | Max Output Power (dBm) |
|---|---|---|---|
| HT-LTE1400-30 | 18-28 | 15 ± 5 | 30 |
| HT-LTE1400-36 | 24-28 | 45 ± 10 | 36 |
| HT-SDR-1400-40 | 24-28 | 80 ± 20 | 40 |
| HT-SDR-1400-46 | 24-28 | 180 ± 25 | 46 |
Frequency Band Configuration
HT-SDR-1400-XX supports multiple frequency bands. Users are not allowed to modify them.
| Frequency Band | Range |
|---|---|
| 1.4G | 1350–1450 MHz |
| TBD | TBD |
Factory-configured 1.4G frequency band is provided.
Transmit Power
HT-SDR-1400-XX is available in multiple maximum output power versions. Select the appropriate version according to the actual application scenario: 30dBm, 36dBm, 40dBm, 46dBm.
Intelligent Frequency Selection
HT-SDR-1400-XX supports intelligent frequency selection. Through dynamic spectrum detection across the network, each node can dynamically adjust its operating frequency within the pre-configured frequency list according to environmental and interference conditions, achieving intelligent dynamic frequency-diverse networking and automatic interference avoidance.
Bandwidth Configuration
HT-SDR-1400-XX supports 5MHz, 10MHz, and 20MHz bandwidth configurations.
Transmission Distance
HT-SDR-1400-XX supports software-configurable distance limits, with a maximum range of 500 km. Selection should be based on the actual application scenario.
Interface & LED Indicators
When the digital interfaces are facing down, the LED indicators from left to right are:
- Dual-color LED 1: Power indicator — green when power is normal, red goes off when FPGA programming is complete.
- Dual-color LED 2: Signal strength indicator — green, yellow, red, none (from strong to weak).
- Dual-color LED 3: Link indicator — green for link established, red for link lost.
- Dual-color LED 4: Ethernet port 1 indicator
- Dual-color LED 5: Ethernet port 2 indicator
Interface Configuration
- Power: XT30PW-M, GND/VCC
- Ethernet 1 & 2: PH2.0-4, RX-/RX+, TX-/TX+, 10/100M Ethernet
- Dual RS232 Serial Ports: PH2.0-6, R1/GND/T1, R0/GND/T0
- Single TTL Serial Port: PH2.0-3, R2/GND/T2, TTL 3.3V
Bandwidth Sensitivity & Data Rate Table (20 MHz Bandwidth)
| Distance Mode | MCS0 | MCS1 | MCS2 | MCS3 | MCS4 | MCS5 | MCS6 | MCS7 | MCS8 |
|---|---|---|---|---|---|---|---|---|---|
| Single Antenna Sensitivity (dBm) | -101 | -98 | -95 | -92 | -88 | -86 | -83 | -80 | -77 |
| Dual Antenna Sensitivity (dBm) | -104 | -101 | -98 | -95 | -91 | -89 | -86 | -83 | -80 |
| SNR (dB) | -8 | -5 | -2 | 4 | 7 | 10 | 13 | 16 | 19 |
| UDP Throughput (Mbps) | |||||||||
| 10KM | 1.5 | 3.2 | 6.4 | 13 | 20 | 26 | 33 | 40 | 47 |
| 30KM | 1.4 | 2.9 | 5.9 | 12 | 18 | 24 | 31 | 37 | 43 |
| 50KM | 1.3 | 2.7 | 5.5 | 11 | 17 | 22 | 28 | 34 | 40 |
| 100KM | 1.1 | 2.4 | 4.7 | 9.6 | 14 | 19 | 24 | 29 | 34 |
| 150KM | 0.9 | 1.9 | 4.0 | 8.3 | 12 | 16 | 21 | 25 | 29 |
| 200KM | 0.8 | 1.7 | 3.6 | 7.4 | 11 | 14 | 18 | 22 | 26 |
| 250KM | 0.7 | 1.5 | 3.2 | 6.6 | 10 | 13 | 16 | 20 | 23 |
| 300KM | 0.6 | 1.4 | 2.9 | 6.0 | 9.1 | 12 | 15 | 18 | 21 |
| 400KM | 0.5 | 1.1 | 2.4 | 5.0 | 7.6 | 10 | 12 | 15 | 18 |
| 500KM | 0.4 | 1.0 | 2.1 | 4.3 | 6.6 | 8.8 | 11 | 13 | 15 |
Note: For 10 MHz bandwidth, data rates are approximately half of the 20 MHz bandwidth; for 5 MHz bandwidth, data rates are approximately one-quarter of the 20 MHz bandwidth.
