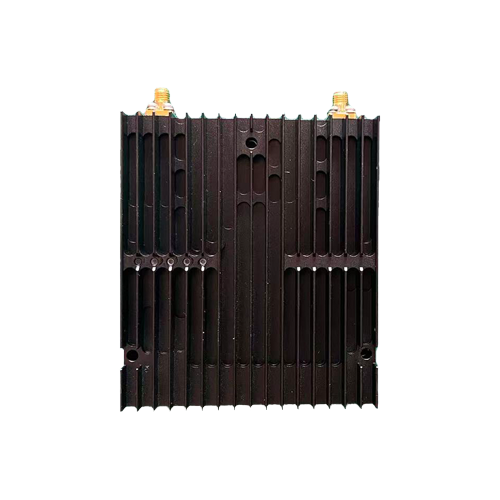

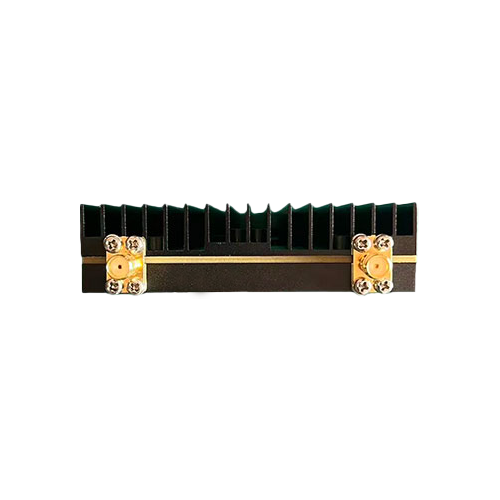

Communication Module HT-SDR-1400-30
HT-SDR-1400-30 is independently developed by Zhongxun Huitong Technology. It adopts a Software Defined Radio (SDR) architecture to realize MESH networking, and can be used for different distances by matching power amplifiers of various power levels. It supports MESH networking, with a maximum bandwidth of 20 MHz, a maximum throughput of 47 Mbps, intelligent frequency selection, AES256 encryption, and range extension mode.
Product description
HT-SDR-1400 Series – Software Defined Mesh Radio
Product Overview
The HT-SDR-1400-30 is an SDR (Software Defined Radio) based mesh networking device independently developed by HTTEC (Beijing Zhongxun Huitong Technology Co., Ltd.).
It enables flexible mesh networking and supports different power amplifier modules for long-distance wireless communication.
Main Features
- Supports MESH self-organizing network
- Output Power Options: 30dBm / 36dBm / 40dBm / 46dBm
- Bandwidth Options: 5MHz / 10MHz / 20MHz
- Operating Frequency: 1.4GHz band (customizable)
- Max Data Throughput: 47Mbps
- Max Transmission Distance: up to 500km
- Smart Frequency Selection and Automatic Channel Control
- AES256 Encryption for secure communication
- Two Ethernet ports (10/100M)
- Three serial ports (2×RS232, 1×3.3V TTL)
Applications
- Unmanned Systems Communication (UAV, UGV, USV)
- Maritime Long-Range Wireless Transmission
- Point-to-Multipoint Mid-Range Communication
- Power Line and Hydrological Inspection
- Emergency and Security Communication Networks
Typical Ratings
| Model | Input Voltage (V) | Max Power (W) | Tx Power (dBm) |
|---|---|---|---|
| HT-LTE1400-30 | 18–28 | 15±5 | 30 |
| HT-LTE1400-36 | 24–28 | 45±10 | 36 |
| HT-SDR-1400-40 | 24–28 | 80±20 | 40 |
| HT-SDR-1400-46 | 24–28 | 180±25 | 46 |
Frequency Band
| Band | Range (MHz) |
|---|---|
| 1.4G | 1350–1450 |
| TBD | TBD |
Factory pre-configured with 1.4GHz frequency.
Transmit Power
Multiple power versions are available (30 / 36 / 40 / 46dBm).
Select the appropriate power level according to actual deployment needs.
Smart Frequency Selection
The HT-SDR-1400 series supports intelligent frequency hopping through real-time spectrum analysis.
Each node dynamically adjusts its operating frequency within a preset list to avoid interference and maintain stable mesh links.
Bandwidth Options
Supports 5MHz, 10MHz, and 20MHz configurable bandwidths.
Transmission Distance
Software-defined range limit up to 500km, configurable based on application.

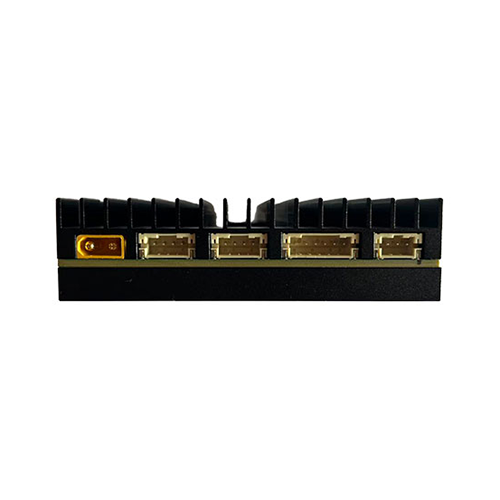

Interface & Indicators
- Power: XT30PW-M (VCC / GND)
- Ethernet 1 & 2: PH2.0-4 (RX-/RX+/TX-/TX+)
- Dual RS232 Serial Ports: PH2.0-6 (R1/GND/T1/R0/GND/T0)
- TTL Serial Port (3.3V): PH2.0-3 (R2/GND/T2)
LED Indicators (Left to Right):
- Power (Green = normal, Red = loading FPGA)
- Signal Strength (Green → Yellow → Red → Off)
- Link Status (Green = connected, Red = disconnected)
- LAN1 Indicator
- LAN2 Indicator
Performance Table (20MHz Bandwidth)
| Distance | Max UDP Throughput (Mbps) | Sensitivity (Single/Dual Antenna) |
|---|---|---|
| 10 km | up to 47 Mbps | -101 / -104 dBm |
| 50 km | up to 40 Mbps | -95 / -98 dBm |
| 100 km | up to 34 Mbps | -92 / -95 dBm |
| 200 km | up to 26 Mbps | -88 / -91 dBm |
| 300 km | up to 21 Mbps | -83 / -86 dBm |
| 500 km | up to 15 Mbps | -77 / -80 dBm |
10MHz bandwidth ≈ ½ throughput; 5MHz ≈ ¼ throughput.
