Product Overview

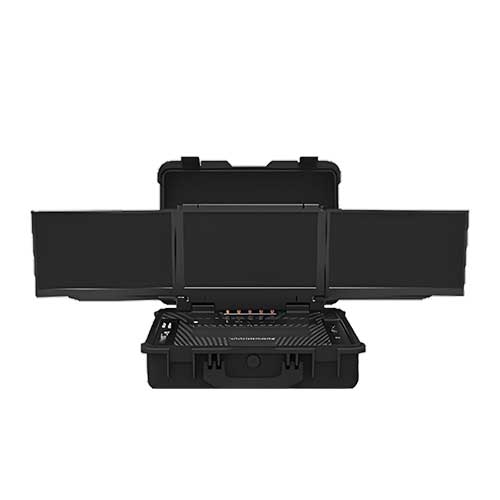

The HT1800 is a portable multimedia command and dispatch platform. It integrates the technologies and functional modules commonly used in command and dispatch applications into a ruggedized carry-case. The system can be transported by a single operator or by vehicle to the designated location and is ready for operation immediately upon deployment. It is suitable for various application scenarios, such as on-site emergency command, temporary command posts, mobile headquarters, and extended dispatch centers.
The HT1800 adopts a multi-screen collaborative display and control design, providing users with three monitoring screens that enable simultaneous display and preview of multiple HD video sources. It serves as a core device for indoor and outdoor emergency command, coordination, and communication, offering voice communication and other essential features. Based on the operational environment and customization requirements, the device incorporates practical designs such as core equipment cooling duct systems and power grid communication capabilities.
HT1800 Technical Specifications
📦 Dimensions
| Item | Specification |
|---|
| Transport Size | 514 × 422 × 154 mm |
| Deployed Size | 1120 × 543 × 504 mm |
🛡 Protection Rating
| Item | Specification |
|---|
| Ingress Protection | IP66 |
🌡 Environmental Parameters
| Item | Specification |
|---|
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -25°C to +50°C |
📷 Image Acquisition
| Item | Specification |
|---|
| Camera | Integrated 1080P HD Camera |
🖥 Display
| Item | Specification |
|---|
| Screen Size | 15.6 inches |
| Resolution | 1920 × 1080 @ 60 Hz |
| Brightness | 500 nits |
🌐 Communication Module
| Item | Specification |
|---|
| Router | Integrated 5G Industrial Router |
| Carrier Support | China Mobile / China Unicom / China Telecom |
| Network Standards | 2G / 3G / 4G / 5G |
🖥 Processing Unit
| Item | Specification |
|---|
| CPU Option 1 | i7-8650U, 4 cores / 8 threads, Turbo 4.20 GHz |
| CPU Option 2 | i7-11700T, 8 cores / 16 threads, Turbo 4.60 GHz |
| Memory | 32 GB (customizable) |
| Storage | 1 TB SSD (customizable) |
🔋 Built-in Battery
| Item | Specification |
|---|
| Battery Type | Lithium-ion |
| Voltage | 12V |
| Capacity | 200 Wh |
🔈 Audio Interfaces
| Item | Specification |
|---|
| Input Port | 3.5 mm × 1 |
| Output Port | 3.5 mm × 1 |
| Speaker Power | 15 W |
| Microphone Pickup | Omnidirectional |
🔌 Other Interfaces
| Item | Specification |
|---|
| USB Ports | USB 3.0 × 4 |
| SIM Card Slot | 5IM Slot × 1 |
| Power Port | Standard AC Inlet |
🎮 Control Method
| Item | Specification |
|---|
| Control Type | Capacitive Touch Control Keys |
🎥 Video Interfaces
| Item | Specification |
|---|
| Input Port | HDMI × 1 |
| Output Ports | HDMI × 2 |
