Product description
Product Name

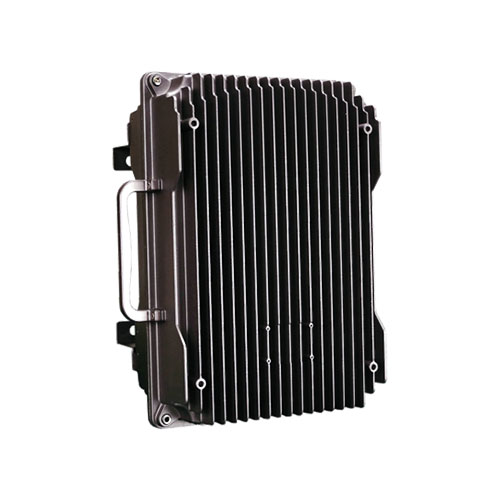

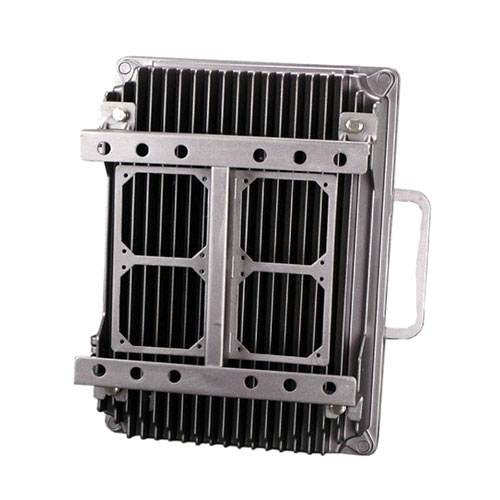

HT-B600 Series Integrated Outdoor LTE Wireless Access Base Station
Product Overview
HT-B600 Series Integrated LTE Outdoor Wireless Access Base Station
This all-in-one equipment features an industrial design with compact structure, high reliability, low power consumption, and strong environmental adaptability.
Key Features
- Integrated Structure Combines BBU and RRU into one compact outdoor unit, simplifying installation and reducing maintenance costs.
- Strong Anti-interference Performance Industrial-grade circuit design ensures reliable performance in complex environments and stable long-term operation.
- Easy Installation & Maintenance Plug-and-play connection design supports wall or pole mounting, reducing deployment time.
- High Stability Equipped with an industrial-grade chipset, supporting 24/7 continuous operation.
- Carrier-grade High Performance & Capacity Fully compliant with TD-LTE R9 standard, suitable for wide-area outdoor coverage.
- Convenient Maintenance Supports WEB-based configuration and remote management via IWB interface.
- Ultra-low Power Consumption <150W (DC 48V or AC 220V), ensuring efficient energy use and longer device life.
- Multi-mode, Multi-network Operation Supports multiple networking modes for flexible deployment; can form hybrid networks with multiple systems.
System Diagram
The HT-B600 connects through the operator’s network or private LTE core to provide wireless coverage for remote sites.
Typical applications include government departments, smart grids, power distribution networks, intelligent transportation, and smart campuses.
Technical Specifications
| Item | Specification |
|---|---|
| Standard | TD-LTE R9 |
| Supported Frequency Bands | 1.4G / 1.8G / 400M / 500M / 600M / 700M |
| Applicable Models | HT-B600 (566–626 MHz) / HT-B660 (606–678 MHz) / HT-B800 (1785–1805 MHz) |
| Channel Bandwidths | 1.4 / 3 / 5 / 10 / 15 / 20 MHz |
| Data Rate | Downlink: 100 Mbps; Uplink: 50 Mbps |
| Transmit Power | Dual-channel 20 W |
| Positioning | Built-in GPS |
| Network Interface | 1 × Gigabit Ethernet port + 1 × optical port |
| Operating Temperature | –40 °C ~ +65 °C |
| Humidity Range | 5% ~ 100% RH |
| Ingress Protection | IP65 |
| Power Consumption | <150 W |
| Power Supply | DC 48 V / AC 220 V |
| Dimensions | 450 mm (L) × 315 mm (W) × 180 mm (H) |
| Weight | <20 kg |
