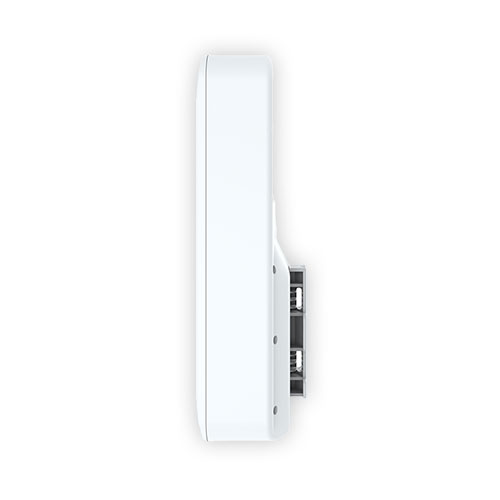

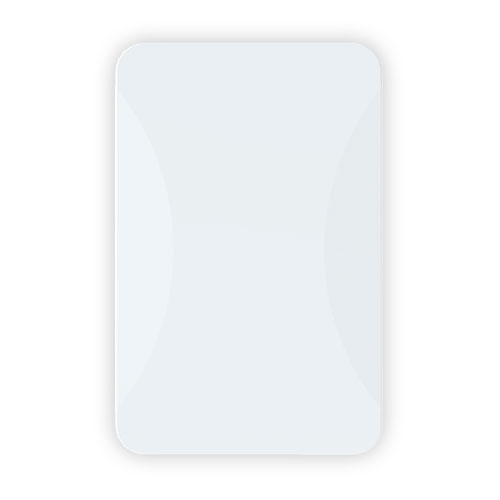

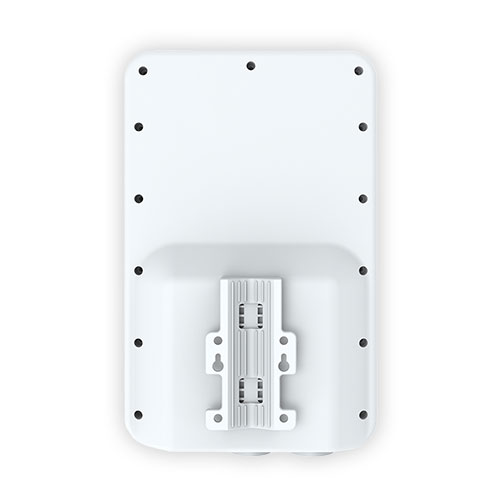

WIFI 6 Outdoor Wireless AP HT830-P2
The HT830-P2 is a high-performance 4T4R dual-band 802.11AX product. It provides dual-band wireless services at 2.4GHz and 5.8GHz, with a maximum access rate of 574Mbps for the 2.4GHz band and 2402Mbps for the 5GHz band.
Category: Wireless Coverage Series
Product description
Product Overview
HT830-P2 is a high-performance 4T4R dual-band 802.11AX product, providing both 2.4GHz and 5.8GHz wireless services. The 2.4GHz band supports up to 574Mbps access rate, and the 5GHz band supports up to 2402Mbps access rate.
Product Features
- Better Transmission Quality: Higher transmission rate, with a maximum concurrent rate of up to 3000Mbps.
- Chipset: IPQ5018 + QCN6102 chipset significantly expands user capacity, supporting over 128 users.
- RF Design: Features high-power FEM for stable performance and extended coverage.
- Enhanced Protection: Includes a lightning protection component for improved device protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HT830-P2 |
| CPU | IPQ5018 + QCN6102 |
| Flash | SPI NOR 8MB, SPI NAND 128MB |
| DDR3 | External 512MB x 1 |
| 2.4GHz Operating Frequency | 2.4GHz ~ 2.484GHz |
| 2.4GHz WiFi Protocol | 802.11 b/g/n/ac/ax |
| 5GHz Operating Frequency | 5.150GHz ~ 5.825GHz |
| 5GHz WiFi Protocol | 802.11 a/n/ac/ax |
| Antennas | 4 x 7dBi dual-band directional antennas, angle >120° |
| Max Rate | 2.4GHz: 574Mbps, 5GHz: 2402Mbps |
| 2.4GHz Transmit Power | 802.11b: 24±2dBm (1M) |
| 802.11g: 21±2dBm (54M) | |
| 802.11n HT20: 20±2dBm (MCS7) | |
| 802.11ax HE20: 18±2dBm (MCS11) | |
| 5GHz Transmit Power | 802.11a: 19±2dBm (54M) |
| 802.11n HT20: 18±2dBm (MCS7) | |
| 802.11ac VHT20: 17±2dBm (MCS9) | |
| 802.11ax HE160: 17±2dBm (MCS11) | |
| 2.4GHz Receive Sensitivity | 802.11b: -85dBm (11M) |
| 802.11g: -72dBm (54M) | |
| 802.11n HT40: -68dBm (MCS7) | |
| 802.11ax HE20: -60dBm (MCS11) | |
| 5GHz Receive Sensitivity | 802.11a: -72dBm (54M) |
| 802.11ac VHT80: -58dBm (MCS9) | |
| 802.11ax HE160: -51dBm (MCS11) | |
| 2.4GHz EVM | ≤-10dB (802.11b), ≤-25dB (802.11g) |
| ≤-28dB (802.11n), ≤-35dB (802.11ax) | |
| 5GHz EVM | ≤-25dB (802.11a), ≤-28dB (802.11n) |
| ≤-32dB (802.11ac), ≤-35dB (802.11ax) | |
| Frequency Offset (ppm) | ±20ppm |

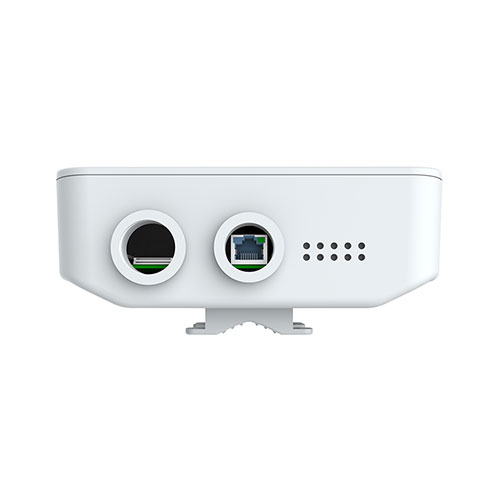

| WAN Interface (RJ45) | 1 x 10/100/1000 adaptive WAN port, supports PoE 48V power |
| Console Interface (RJ45) | 1 x Console port |
| External Button | Reset button (long press 6-10 seconds for factory reset) |
| Status Indicators | PWR, SYS, WAN, 2.4G, 5.8G LED indicators |
| Power Supply | PoE 802.3at |
| Max Power Consumption | < 16W |
| Dimensions | 304mm x 181mm x 88mm |
| Weight | 1.6kg |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% (non-condensing) |
| Protection Level | IP67 |
| ESD | Air discharge +/-8kV, Contact discharge +/-4kV |
| Surge | Common mode 4kV, Differential mode 2kV |
