Outdoor Wireless Base Station HT-AX5400 HW

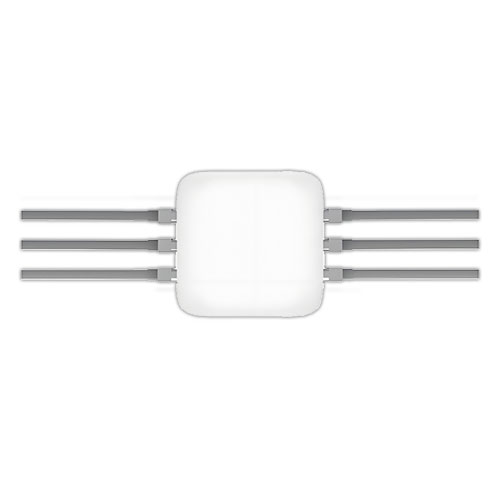

The HT-AX5400HW is a WiFi 6 outdoor wireless base station access device. It adopts a four-stream design for the entire unit along with an omnidirectional antenna, effectively addressing different WLAN coverage requirements in harsh outdoor environments and other challenging scenarios.
Product description
Product Features
HT-AX5400HW is an outdoor WiFi 6 wireless access device, designed with four spatial streams and omnidirectional antennas. It effectively solves the WLAN coverage needs in outdoor and other harsh environmental scenarios. The industrial-grade dual-band wireless transmission device uses industrial-grade design and materials, combined with enhanced dual-band roaming technology, to provide professional wireless communication for industries such as warehousing logistics, manufacturing, power, and transportation.
Product Features:
- High Throughput Supports the 802.11ax standard and 4x4 spatial streams, with a maximum transmission speed of up to 5.4Gbps. Coverage range can reach up to 300 meters. Wired ports support 2.5Gbps, avoiding system bottlenecks caused by gigabit wired ports.
- Enabling Multi-Terminal Simultaneous Communication The device supports MU-MIMO technology, allowing data to be sent to multiple terminals simultaneously, breaking through the traditional serial communication mechanism of wireless networks. Wireless spectrum utilization is greatly enhanced, and the number of effective connected users is significantly increased. This helps reduce the cost of wireless network deployment and improves user experience under high-density conditions.
- High Reliability The device’s firmware system is independently developed to ensure long-term stable operation. It also includes a firmware backup mechanism to prevent device failures under extreme conditions. With an IP66 protection rating, the device is adaptable to various working environments.
- Intelligent Load Balancing For newly connected users, the device automatically calculates whether there are less-loaded wireless access points nearby for users to connect to. The device guides users to connect to these points, maximizing wireless network capacity.
- Enhanced Roaming The intelligent 802.11k/v/r algorithms automatically optimize client connections based on network quality. Clients can switch between access points in milliseconds, without manual intervention, ensuring smooth experience during gaming or video calls while moving.
Hardware Specifications
| Item | Specification |
|---|---|
| Processor | IPQ5018 |
| Memory | 512MB DDR3L, 32MB Flash |
| Frequency | 2.4GHz & 5GHz |
| Max Transmission Power | 2.4G: 21 dBm, 5G: 24 dBm |
| MIMO | 2.4GHz 2x2 573.5Mbps, 5GHz 4x4 4800Mbps |
| Antenna Gain | 2.4GHz: 5dBi, 5GHz: 5dBi |
| Antenna Beamwidth | 5GHz: 5dBi |
| Antenna Size | Omnidirectional 360° |
| Network Ports | 1x 2.5Gbps RJ45, 1x 10/100/1000Mbps RJ45 |
| RF Ports | 6x N-type connectors |
| Power Supply | 48V POE+ |
| Dimensions | 200x200x50mm |
| Installation Method | Pole mounting |
| Operating Temperature | -40°C~70°C |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 5%~95%RH, non-condensing |
| Protection Rating | IP66 |
| Wind Resistance | 150km/h |
Software Specifications
| Item | Specification |
|---|---|
| Working Protocol | 802.11a/b/g/n/ac/ax |
| Operation Mode | Access Point (AP), Client |
| Security Configuration | WPA3, Hidden SSID, IP/MAC Filtering |
| Network Mode | Bridge, Router |
| Configuration Management | Web-based configuration, AC remote management, SNMP management |
| Other Features | Load balancing, Roaming enhancement, Multi-VAP support, Auto channel selection, Client isolation, Client rate limiting, Max user count configuration, VLAN support, Firmware backup |
