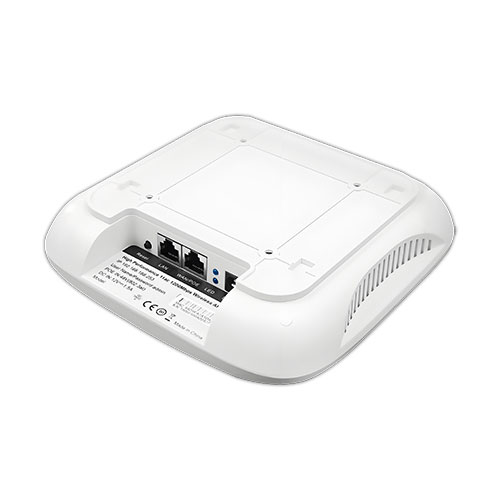

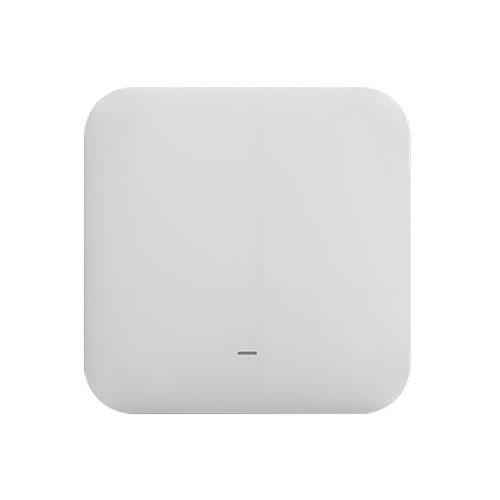

Dual-Band Wireless AP HT-G3200
The HT-G3200 is a dual-band high-power wireless AP that operates simultaneously on the 2.4GHz and 5GHz frequency bands. It supports 900Mbps under the 11AC standard (for 5GHz) and 300Mbps under the 11N standard (for 2.4GHz), with a maximum wireless speed of up to 1200Mbps and support for over 100 concurrent accesses. It can connect more wireless clients, solving wireless access issues in high-density environments such as the energy industry, industrial parks, and logistics parks.
Product description
Product Features
Product Introduction
The HT-G3200 dual-band high-power wireless AP operates simultaneously in the 2.4GHz and 5GHz frequency bands. It supports 900Mbps 11AC (5GHz) and 300Mbps 11N (2.4GHz), with a maximum wireless access rate of up to 1200Mbps. It can support over 100 devices simultaneously, making it ideal for addressing wireless connectivity issues in high-traffic environments such as the energy industry, industrial parks, and logistics hubs.
The dual-band high-power AP provides 5GHz wireless service, offering a cleaner wireless environment and more stable connections. By utilizing MIMO technology, it ensures better wireless transmission performance, stability, and coverage. It also supports practical features such as wireless bridging, wireless AP, and WISP, making it the perfect choice for your wireless internet needs. The sleek, user-friendly design provides a fresh, enhanced experience.
| Model | HT-G3200 |
|---|---|
| Hardware | |
| CPU | MT7621DAT + MT7615D |
| Flash | SPI NOR 8MB |
| Dimensions | 168mm x 168mm x 32mm |
| 2.4G Frequency | 2.4GHz - 2.484GHz |
| 2.4G WIFI Protocol | 802.11b/g/n |
| 5G Frequency | 5.150GHz - 5.850GHz |
| 5G WIFI Protocol | 802.11a/n/ac |
| Built-in Antenna (2.4G) | 2 pieces, Gain: 4.6dBi |
| Built-in Antenna (5G) | 2 pieces, Gain: 4dBi |
| Maximum Speed | 1200Mbps |
| Maximum Wireless Clients | 100+ |
| 2.4G Transmit Power | <22dBm |
| 5.8G Transmit Power | 24dBm |
| WAN Interface | 1 x 10/100/1000M Adaptive WAN port, supports 48V POE power |
| LAN Interface | 1 x 10/100/1000M Adaptive LAN port |
| POE | 48V 0.5A |
| Electrical Properties | DC 12V 1A |
| Maximum Power Consumption | <10W |
| ESD Test | ±6KV |
| Button | Reset button (press and hold for 6-10 seconds to restore default settings) |
| Appearance Indicators | LAN light, WAN light, Three-color light (Red: 2.4G, Green: 2.4G active, Blue: 5.8G) |
| Operating Temperature | -30°C to 45°C |
| Limit Temperature | -30°C to 70°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5%~95% (non-condensing) |
