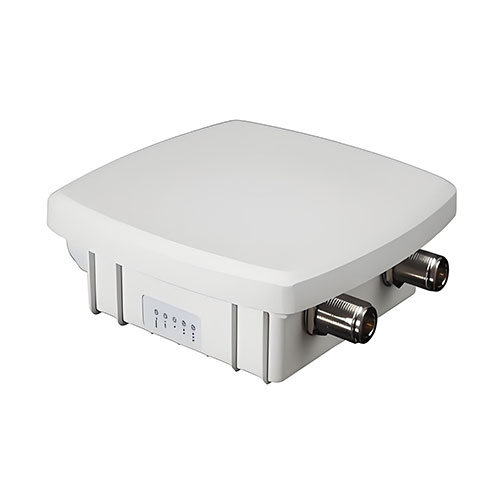

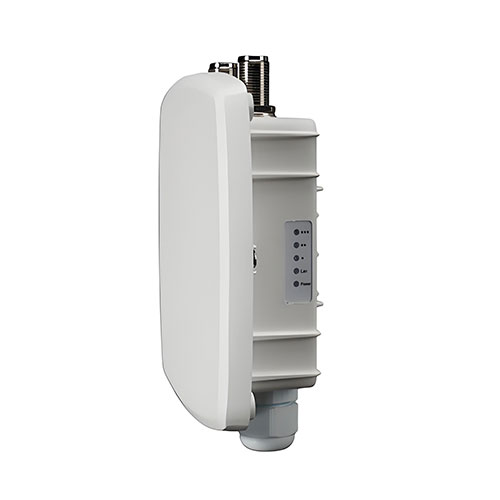

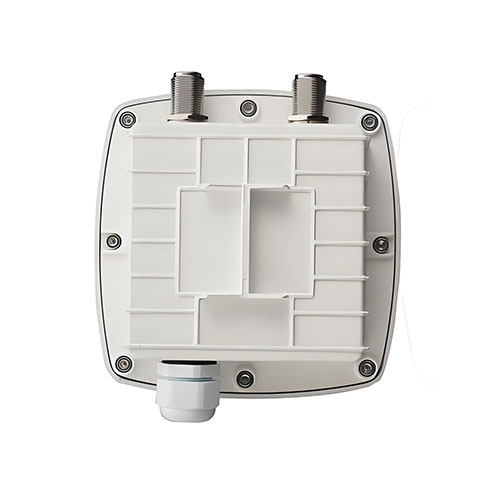

5.8G High-Power Wireless Base Station HT5800-H
The HT-5800-H is an outdoor wireless base station operating in the 5.8GHz frequency band. It complies with the IEEE 802.11a/n standards, features an output power of up to 29dBm, and offers a larger coverage area and stronger penetration capability, making it highly suitable for use as a central base station for wireless coverage.
Product description
The HT-5800-H outdoor wireless base station operates in the 5.8GHz frequency band, complies with IEEE 802.11a/n standards, and offers an output power of up to 29dBm. It provides a larger coverage area and stronger penetration capabilities, making it highly suitable for use as a wireless coverage central base station. The device uses mature hardware solutions and advanced software technologies to ensure stable, long-term operation without crashes. Its unique iPoll TDMA technology better supports point-to-multipoint networking with consistent bandwidth and no dropouts. With over a hundred available frequency channels, it features strong anti-interference capabilities. The fully integrated metal shell is sealed and designed to withstand extreme temperatures, moisture, dust, and water, making it perfect for outdoor use in various harsh environments.
| Specification | Details |
|---|---|
| Product Type | Outdoor Wireless Base Station |
| Frequency Band | 5.8GHz |
| Standards Compliance | IEEE 802.11a/n |
| Output Power | Up to 29dBm |
| Maximum Coverage | Wide coverage, ideal for wireless coverage in center base stations |
| Transmission Technology | iPoll TDMA for better point-to-multipoint networking and stable bandwidth |
| Enclosure | Metal, fully sealed, weather-resistant (water, dust, moisture) |
| Processor | Atheros AR9344 PA: Sky5012B*2 |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Ethernet Port | 1 x 10/100M Ethernet port |
| Data Modulation | OFDM (BPSK/QPSK/16-QAM/64-QAM), MIMO-OFDM (11n) |
| Data Rate | 802.11a: 6,9,11,12,18,24,36,48,54Mbps802.11n: 300,270,240,180,120,90,60,30Mbps |
| Security | WPA-PSK/WPA2-PSK, WPA/WPA2, WEP |
| Indicators | 5 LEDs (Power, LAN, RSSI Signal) |
| Reset Method | Button reset (M22 waterproof cover) |
| Power Supply | Passive PoE (12-24V POE) |
| Enclosure Material | ADC Die-cast Aluminum, Spray Paint |
| Dimensions | 138 x 138 x 62mm |
| Weight | 550g |
| Operating Temperature | -40 to 65°C |
| Power Consumption | Max 5W |
| Operating Humidity | 5% to 95% (non-condensing) |
| Installation Method | Pole-mounted (clamp style) |
| Packaging | 1 unit per box, Dimensions: 180 x 160 x 70mm, Weight: 0.8kg |
| Special Features | - Supports up to 128 devices- Excellent interference resistance- Automatic channel selection- Built-in spectrum scanning and analysis |
