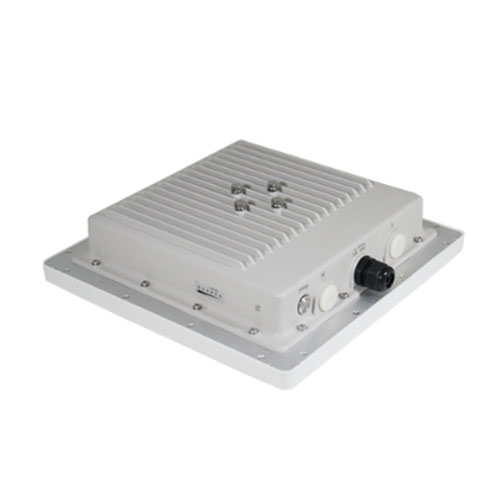

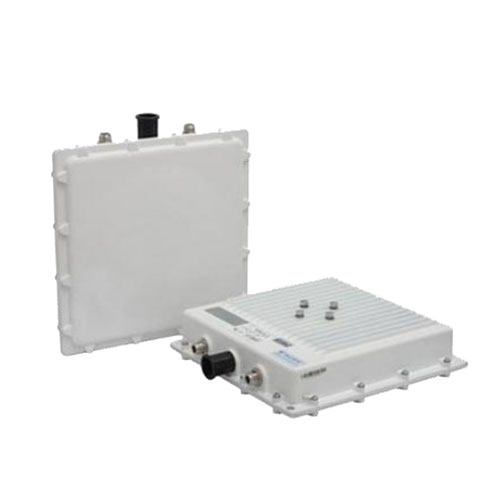

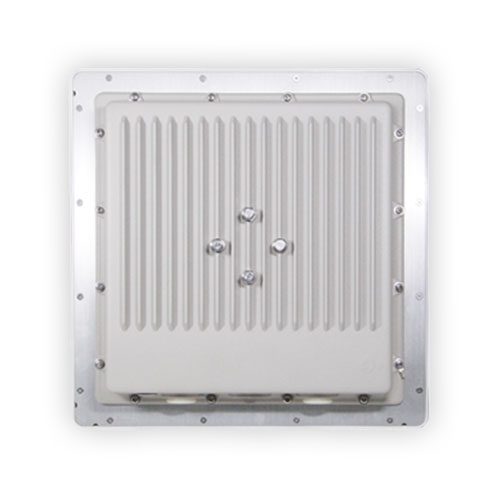

Dual-Band Outdoor Wireless Coverage AP Base Station LM6000
The LM6000 series is a carrier-grade dual-band Gigabit high-density outdoor wireless AP based on the 802.11N standard. It operates in the unlicensed 2.4GHz/5.8GHz frequency bands and can provide a maximum data transmission rate of 300Mbps.
Category: Wireless Coverage Series
Product description
Here is the LM6000 series product information, formatted into a table for clarity:
| Specification | Details |
|---|---|
| Product Type | Outdoor Wireless AP |
| Frequency Bands | 2.4GHz / 5.8GHz (Unlicensed Bands) |
| Max Data Transmission Rate | 300Mbps |
| Enclosure | Cast aluminum metal shell, IP67 rated |
| Operation Modes | FAP/TAP mode |
| Controller Support | AC controller management |
| Key Features | AP Zero Configuration, Seamless Roaming, High Sensitivity, Long Range |
| Target Applications | Office, commercial venues, education, healthcare, hotels, logistics, manufacturing, ports, chemical, power industries, etc. |
| Wireless Functionality | High power, Virtual AP, MIMO, OFDM, BeamForming, etc. |
| User Capacity | Up to 100+ users per AP |
| Seamless Roaming | Fast roaming in multi-AP networks |
| Load Balancing | Automatic client traffic distribution across multiple APs |
| Interference Resistance | BeamForming technology to reduce interference and optimize network performance |
| Virtual AP | Multiple virtual APs derived from a single physical AP |
| Automatic Frequency Scanning | Dynamic Frequency Selection (DFS) for optimal channel selection |
| Security Features | User isolation, MAC address filtering, WEP, WPA, WPA2, AES, TKIP, EAP, 802.1X |
| Management | Centralized management via AC controller, plug-and-play APs, firmware updates, status monitoring |
| Transmit Power | Adjustable up to 500mW |
| Power Supply | PoE (Power over Ethernet) |
| Environmental Compliance | Low power, low radiation, meets national wireless safety standards |
| Durability | IP68 protection, dustproof, waterproof, weather-resistant, shock-resistant, high and low temperature stability |
| Installation Type | Pole mounting, easy to install with included components |
