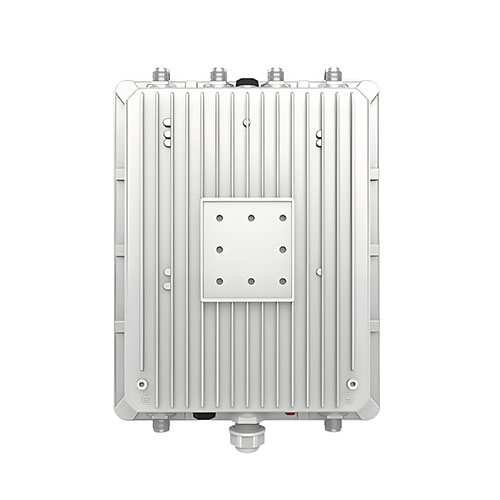

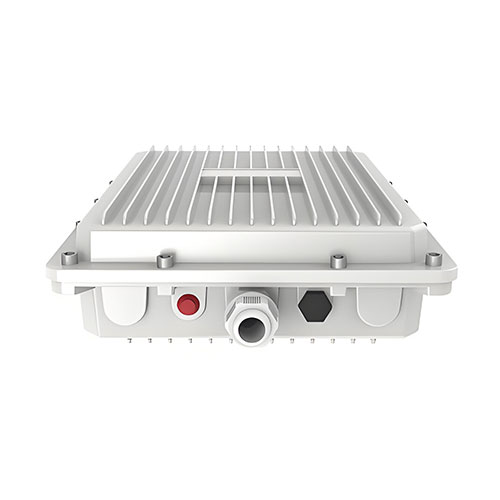

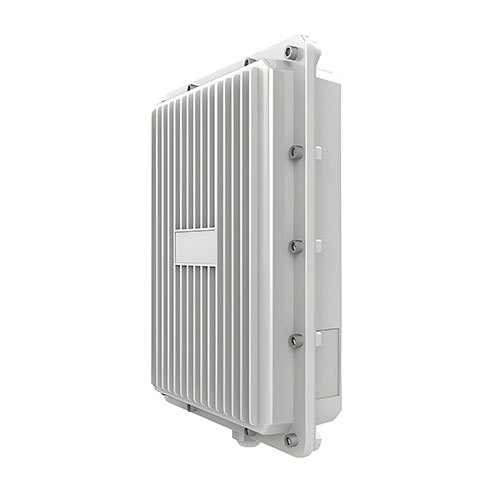

Carrier-Grade WiFi 6 Dual-Band Outdoor Wireless AP Base Station HT-AX840
The HT-AX840 is a high-performance outdoor wireless AP with a speed of 1800Mbps, and its WiFi coverage radius can reach 150 meters. It adopts a sun-protective, dustproof, and waterproof sealed housing as well as a built-in lightning arrester design, enabling it to work in various environments.
Product description
Product Features
HT-AX840 is a high-performance 1800Mbps outdoor wireless AP with a coverage radius of up to 150 meters. It features a sunproof, dustproof, waterproof sealed shell, and an integrated lightning protection design, making it suitable for all types of environments. This device supports the latest IEEE 802.11n/b/g/ax standards, along with multi-path transmission MIMO technology, providing higher transmission speeds and seamless coverage. Customers can choose from omnidirectional or sector antennas according to the environment. The high-power design ensures a wider coverage range and longer transmission distance. It is widely applicable for wireless deployments in residential areas, campuses, squares, scenic spots, resorts, and other locations.
Features:
- Chipset: PQ6000 + QCA8075 + QCN5022 + CN5052, with wireless transmission speeds of up to 1800Mbps, capable of handling data, voice, and video streams efficiently.
- Independent External Power Amplifier Circuit: Features a low-noise power amplifier receiving circuit design, increasing wireless transmission performance and improving the overall wireless signal quality.
- Dual-Band (2.4G & 5.8G): Concurrent dual-band support, achieving a total speed of up to 1800Mbps. With 11AX MIMO wireless technology, it can connect to over 160 wireless devices simultaneously, improving the average bandwidth per terminal by 3-4 times.
- Adjustable RF Power: The RF power can be adjusted based on the actual environment, reducing interference between APs and improving wireless stability.
- Heat Dissipation Design: The heat sink features a snap-on structure design and a nano-coating on the surface, offering enhanced heat dissipation performance.
- SKYWORKS High-Power PA and FEM: Ensures stable performance, wider wireless coverage, and longer transmission distances.
- Lightning Protection Component: Added lightning protection components significantly enhance the device's protective capabilities.
- Open Software Base: The device is based on open-source software, enhancing scalability and compatibility.
| Specification | Details |
|---|---|
| CPU | IPQ6000 + QCA8075 + QCN5022 + QCN5052 |
| Flash | SPI NOR 8MB |
| Nand | 128MB |
| DDR3L | External 512MB * 1 |
| 2.4G RF Chip | QCN5022-2.4G External FEM using SKY85333-11 Interface (WAN) |
| 5.8G RF Chip | QCN5052-5.8G External FEM using SKY85747-11 |
| Network Interface | 1x 10/100/1000M Adaptive WAN (Supports 48V PoE) |
| External Button | Reset Button (Hold for 6-10 seconds to restore factory settings) |
| Status LED | WAN Port LED |
| Power Supply | PoE 802.3at |
| Maximum Power Consumption | < 16W |
| Dimensions | 295mm x 231mm x 80mm |
| Weight | 2.2kg |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95% (Non-condensing) |
| IP Protection Level | IP67 |
| Electrostatic Discharge (ESD) | Air discharge: ±8kV, Contact discharge: ±4kV |
| Surge Protection | Common mode: 4kV, Differential mode: 2kV |
| 2.4G Frequency Band | 2.4GHz - 2.484GHz |
| 5G Frequency Band | 5.150GHz - 5.850GHz |
| 2.4G WIFI Standards | 802.11b/g/n/ax |
| 5G WIFI Standards | 802.11a/n/ac/ax |
| 2.4G Antenna | 2x 2.4G Omnidirectional Antennas, Gain: 6dBi |
| 5G Antenna | 2x 5G Omnidirectional Antennas, Gain: 6dBi |
| Maximum Speed (2.4G) | 300Mbps |
| Maximum Speed (5G) | 866Mbps |
| 2.4G Wireless Power | 802.11b: 23 ± 2dBm (11M), 23 ± 2dBm (1M) |
| 802.11g: 23 ± 2dBm (54M), 23 ± 2dBm (6M) | |
| 802.11n HT20: 22 ± 2dBm (MCS7), 23 ± 2dBm (MCS0) | |
| 802.11n HT40: 21 ± 2dBm (MCS7), 22 ± 2dBm (MCS0) | |
| 802.11ax HT20: 20 ± 2dBm (MCS11), 21 ± 2dBm (MCS0) | |
| 802.11ax HT40: 19 ± 2dBm (MCS11), 20 ± 2dBm (MCS0) | |
| 5G Wireless Power | 802.11a: 23 ± 2dBm (54M), 23 ± 2dBm (6M) |
| 802.11n HT20: 22 ± 2dBm (MCS7), 23 ± 2dBm (MCS0) | |
| 802.11n HT40: 21 ± 2dBm (MCS7), 22 ± 2dBm (MCS0) | |
| 802.11ac HT20: 21 ± 2dBm (MCS9), 22 ± 2dBm (MCS0) | |
| 802.11ac HT40: 20 ± 2dBm (MCS9), 21 ± 2dBm (MCS0) | |
| 802.11ac HT80: 19 ± 2dBm (MCS9), 20 ± 2dBm (MCS0) | |
| 802.11ax HT20: 20 ± 2dBm (MCS11), 21 ± 2dBm (MCS0) | |
| 802.11ax HT40: 19 ± 2dBm (MCS11), 20 ± 2dBm (MCS0) |
| Specification | Details |
|---|---|
| WAN Interface | 1x 10/100/1000M Adaptive WAN Port (Supports 48V PoE) |
| External Button | Reset Button (Hold for 6-10 seconds to restore factory settings) |
| Status Indicator LEDs | WAN Port LED |
| Power Supply | PoE 802.3at |
| Maximum Power Consumption | < 16W |
| Product Dimensions | 295mm x 231mm x 80mm |
| Weight | 2.2kg |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% - 95% (Non-condensing) |
| IP Protection Level | IP67 |
| Electrostatic Discharge (ESD) | Air Discharge: ±8kV, Contact Discharge: ±4kV |
| Surge Protection | Common Mode: 4kV, Differential Mode: 2kV |
