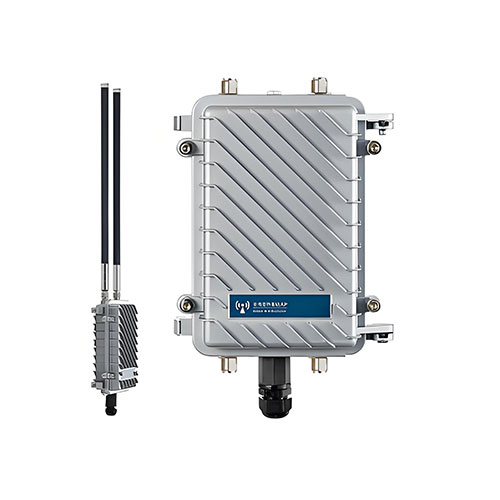

Outdoor Wireless AP HT2400
The HT-2400 is a 300Mbps outdoor wireless AP. It adopts a Qualcomm 9531 industrial-grade chip and external antennas, with a coverage radius of 300-500 meters. This product supports functions such as relay, AP, and gateway, enabling long-distance wireless Internet access and making it suitable for wireless coverage projects.
Product description
Product Features
HT-2400 is a 300Mbps outdoor wireless AP that uses the Qualcomm QCA9531 industrial-grade chip and external antenna. It provides coverage within a radius of 300-500 meters. This product supports functions such as Repeater, AP, and Gateway, allowing long-distance wireless internet access. It is ideal for wireless coverage projects.
HT-2400 is designed to be dustproof, waterproof, sunproof, and frostproof, ensuring reliable operation in various harsh outdoor environments. It also supports POE power supply and remote management features.
Features:
- IEEE 802.11b/g/n Wireless Standard with 300Mbps high-speed rate
- MIMO Architecture for superior wireless transmission performance
- Modes Supported: Gateway, Repeater, AP, Super WDS mode — providing flexibility for various usage scenarios
- Antenna Options: Choose between omnidirectional or directional antennas
- Applications: Suitable for wireless coverage in squares, schools, tourist areas, parks, and other locations
Technical Specifications
| Category | Details |
|---|---|
| Model | HT2400 |
| CPU | Qualcomm QCA9531 |
| Flash | 16MB |
| Memory | 128MB |
| Working Frequency | 2.4GHz - 2.483GHz |
| Transmission Protocol | Supports IEEE 802.11b/g/n, MIMO |
| Transmission Rate | 2.4GHz supports 300Mbps |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM; DSSS: DBPSK, DQPSK, CCK |
| Transmit Power | 802.11n: 24±2 dBm, 802.11g: 24±2 dBm, 802.11b: 26±2 dBm |
| Receive Sensitivity | 802.11n: -88dBm @ MCS0, -70dBm @ MCS7; 802.11g: -88dBm @ 6Mbps, -70dBm @ 54Mbps; 802.11b: -94dBm @ 1Mbps, -85dBm @ 11Mbps |
| EVM | 802.11n: ≤-28 dB, 802.11g: ≤-25 dB, 802.11b: ≤-10 dB |
| Frequency Offset (ppm) | ±20ppm |
| Maximum Wireless Clients | 50+ |
| Interfaces | 1 * 10/100M Adaptive LAN Port, 1 * 10/100M Adaptive WAN/LAN Port, POE 24V, 1.0A, 1 * Reset Button, 1 * DC Jack 12V 1A |
| Operation Modes | Gateway Mode, Universal Repeater Mode, AP Mode, WDS Mode |
| Reset Button | Long press for 10 seconds to restore factory default configuration |
| Status LEDs | SYS Light, WiFi Light, LAN Light, WAN Light |
| Antenna | Built-in 2.4G omnidirectional antenna, Gain: 5dBi |
| Protection Rating | IP65 |
| Power Consumption | < 10W |
| Dimensions | 257mm * 87mm * 38mm (L * W * H) |
| Weight | 345g |
| Operating Environment | Operating Temperature: -40°C to 55°C, Storage Temperature: -40°C to 70°C, Humidity: 5% to 95% (Non-condensing) |
