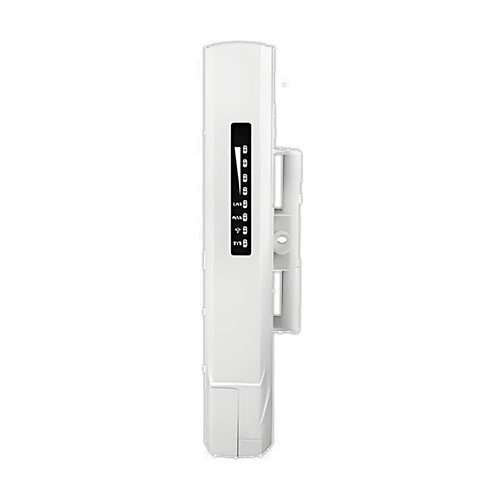

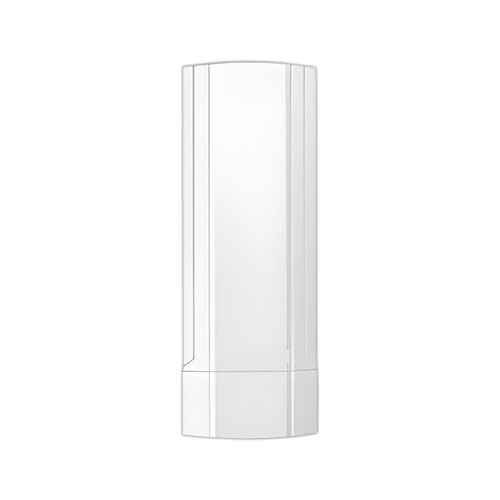

5.8G Outdoor Wireless AP with Built-in Directional Antenna HT5800-A
The HT5800-A is a 5.8GHz 300Mbps outdoor long-range wireless AP. It integrates a 16dBi dual-polarized directional antenna, complies with the IEEE 802.11an protocol, and supports AP/receiver modes, making it suitable for wireless networking and wireless coverage scenarios.
Category: Wireless Coverage Series
Product description
Product Features
HT5800-A is a 5.8G 300M outdoor long-range wireless AP, equipped with a built-in 16dBi dual-polarized directional antenna, and compliant with the IEEE802.11an protocol. It also supports both AP and receiver modes, making it suitable for wireless networking and coverage. The HT5800-A is designed with a dustproof and waterproof shell and antenna, ensuring operation in various outdoor environments. In open spaces, the transmission range is ≥3km.
Features:
- Plug and Play: Quick one-button bridge setup for easy use.
- Dual Ethernet Port Power Supply: Simple operation with dual power supply options.
- Adjustable Wireless Power: Linear adjustable power with wide frequency design, offering 24 adjustable channels to reduce interference between CPEs and improve wireless stability.
- Outdoor Design: Specially designed for outdoor wireless transmission with a transmission range ≥3KM.
Technical Specifications
| Category | Details |
|---|---|
| Model | HT5800-A |
| Chipset | Qualcomm QCA9344 |
| Memory | 64MB DDR2 RAM |
| Flash | 8MB |
| Standard Compliance | IEEE 802.11an |
| Antenna | 2 * 16dBi Dual Polarized Directional Antenna |
| Ethernet Ports | 2 x 10/100Mbps Adaptive Ethernet Ports |
| Reset Button | 1 (Resets to Factory Defaults) |
| Power Consumption | <10W |
| Power Adapter | 24V POE |
| LED Indicators | 1 PWR, 1 WLAN, 2 LAN, 4 Signal Strength Indicators |
| Dimensions | 260 * 110 * 40 mm (L * W * H) |
| Transmission Speed | 300Mbps |
| Transmit Power | 24dBm |
| Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK DSSS |
| RF Characteristics | 5.8GHz |
| Wireless EVM | ≤-25dB@11g 54Mbps ≤-28dB@11n MCS7 |
| 5.8G RF Wireless Data Rate and TX Power | |
| 802.11a Data Rate | 6Mbps: 24dBm, 24Mbps: 22dBm, 9Mbps: 23dBm, 36Mbps: 22dBm, 12Mbps: 23dBm, 48Mbps: 22dBm, 18Mbps: 22dBm, 54Mbps: 21dBm |
| 5GHz 11n HT20 MCS Data Rate | MCS 0/8: 23dBm, MCS 1/9: 23dBm, MCS 2/10: 23dBm, MCS 3/11: 22dBm, MCS 4/14: 22dBm, MCS 5/13: 20dBm, MCS 6/14: 19dBm, MCS 7/15: 19dBm |
| 5GHz 11n HT40 MCS Data Rate | MCS 0/8: 23dBm, MCS 1/9: 23dBm, MCS 2/10: 23dBm, MCS 3/11: 22dBm, MCS 4/14: 22dBm, MCS 5/13: 20dBm, MCS 6/14: 19dBm, MCS 7/15: 19dBm |
