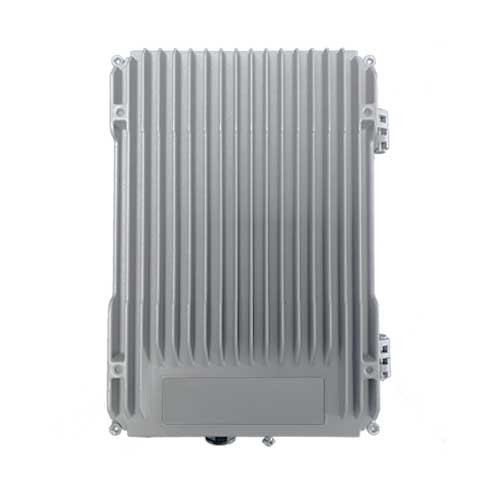

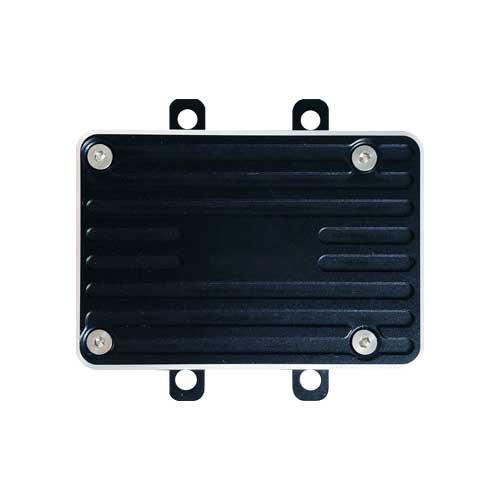

WBS Radio Transceiver

Specification Sheet

Key Technical Indicators

1. Operating Mode: Point-to-Point, Point-to-Multipoint, Mesh Networking Point-to-Point, Point-to-Multipoint, Mesh Self-organizing Network True self-healing Mesh network, auto-routing, store-and-forward Master, Slave (Remote), Repeater mode, Mesh self-organizing network Advanced features such as self-healing Mesh network and auto-routing in PMP mode
2. Frequency Range: 800MHz-900MHz / 1.4GHz (Customizable) Wide frequency range to avoid interference from existing operator base stations.
3. Frequency Hopping Supported: FHSS (Frequency Hopping Spread Spectrum) technology to resist interference by dynamically changing carrier frequencies, supporting up to 276kbps transmission rate.
4. Transmit Power: 46dBm (40W) 40W internal power amplifier effectively increases wireless transmission distance.
5. Software and Hardware Interference Resistance: Four-stage filters provide excellent noise and interference suppression. Optional Forward Error Correction (FEC), 32-bit CRC, and 128/256-bit AES encryption.
6. Transmit/Receive Rate & Sensitivity: Air rate up to 276kbps. Sensitivity: -110dBm @ 115.2kbps, -108dBm @ 172.8kbps, -107dBm @ 230.4kbps.
7. Effective Transmission Distance: 30-100km.
8. Interfaces: Ethernet port, Serial port, DC Power Supply External interfaces include Ethernet port, serial port for user configuration and data transmission. DC power supply: 24V-28V, 4A.
9. Wireless RF Interface: Microwave Omnidirectional Antenna1, Positioning Antenna1 Omnidirectional Antenna: Fiberglass 5dBi omnidirectional antenna, designed for 800~1400MHz, suitable for outdoor use. Copper tube array radiation element, fiberglass outer casing, high gain, good VSWR performance, excellent waterproofing, and anti-aging capabilities. Technical Parameters: Frequency Range: 820-850 MHz Polarization: Vertical Gain: 5dBi VSWR: ≤1.8 Positioning Antenna: BT-100: A multi-constellation single-frequency satellite navigation antenna. High gain, compact size, high sensitivity, multi-system compatibility, and high reliability. Features symmetrical antenna structure for stable phase center and minimal measurement error. High gain, low VSWR, excellent low-elevation signal reception, effective even in obstructed environments. Equipped with anti-multipath choke plate and surge protection, reducing out-of-band interference. UV-resistant PC materials ensure long-lasting outdoor use with IP67 waterproof rating, high-temperature resistance, and UV protection. Main Indicators: Frequency Range: GPS L1, GLONASS L1, BDS B1, GALILEO E1 Gain: 5.5 dBi
10. Positioning Function: BeiDou / GPS

• BeiDou Features: Chip: M10050 Frequency: GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN Operating Mode: GPS, BDS, GALILEO Sensitivity: Tracking: -166dBm, Reacquisition: -166dBm Accuracy: Horizontal: 2.0 meters, Speed: 0.05 m/s Data Output: Baud Rate: 4800bps - 921600bps (default: 38400bps) Output Level: RS232 Output Protocol: NMEA, UBX

1. Operating Temperature: -40°C to 85°C
2. Supports Secondary Development with SDK:

• Provides device API for easy development and expansion.
• Serial port server PC software for settings.
• Provides network programming demo tutorials for VB/Delphi/C#/Borland C++/IOS/Android.
• Windows/IOS/Android serial network debugging assistant.
