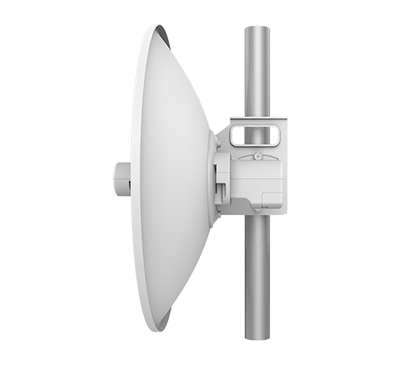

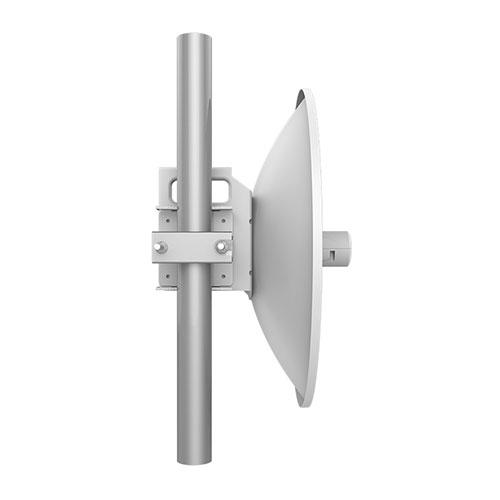

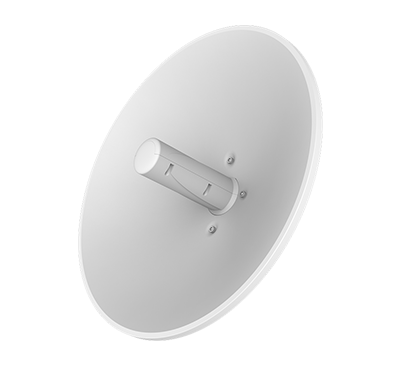

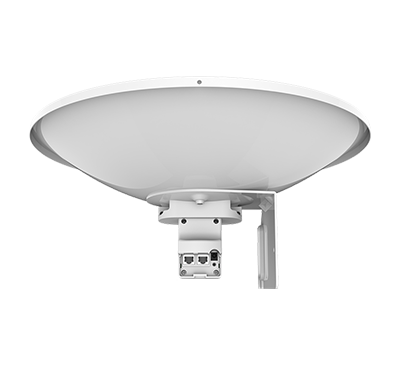

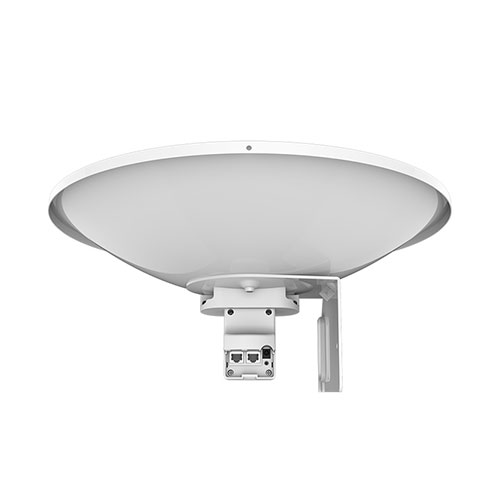

15KM Wireless Transmission
HT5-Dish is a new generation of carrier-grade, medium-to-long distance, outdoor high-performance wireless broadband access and transmission product based on the 802.11ac protocol. It incorporates proprietary protocol wireless technology, which combines industry-leading core technologies including MIMO, BeamForming, TDMA, etc. This product features long transmission distance, high throughput, and strong anti-interference capability.
Product description
Product Introduction

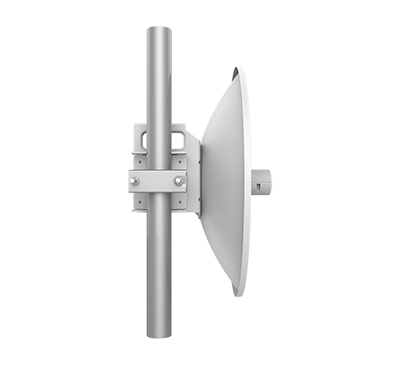

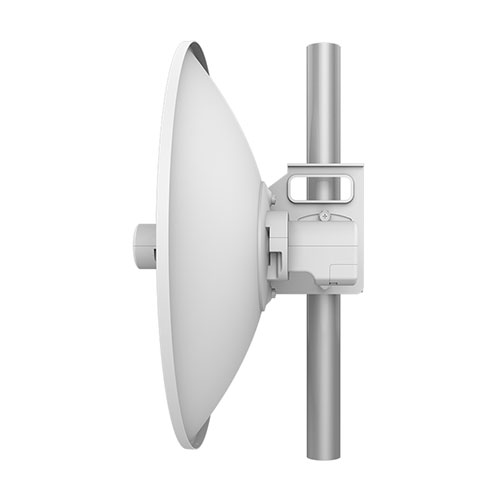

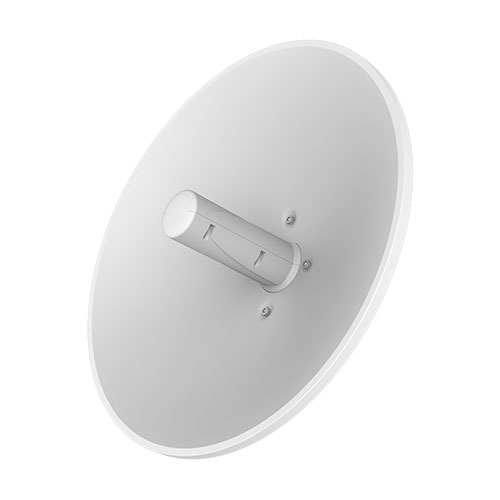

The HT5-Dish is a next-generation, telecom-grade, medium-to-long range, outdoor wireless broadband access and transmission product based on the 802.11ac protocol. It features built-in proprietary wireless technology, integrating industry-leading core technologies such as MIMO, BeamForming, and TDMA, providing long transmission distance, high throughput, and strong anti-interference capability.
With an industry-leading design, the HT5-Dish can deliver up to 867 Mbps throughput. Its innovative compatibility and enhancement of the WiFi protocol ensure high wireless transmission performance, stable point-to-point transmission, and strong interference resistance. It supports high-speed wireless transmission over 15 km and is widely applied in base station communications, forest fire prevention, port transmission, and oilfield monitoring.
The professional outdoor enclosure is designed to withstand harsh environments, providing IP66 dust and water protection, and can operate reliably even under extreme temperatures (-40°C to 70°C).
Product Features
- Proprietary protocol enhances wireless anti-interference capability for superior transmission performance
- TDMA polling avoids transmission collisions and improves throughput
- Intelligent rate control adapts to various environments to optimize bandwidth
- Automatic ACK timeout adjustment ensures long-distance transmission performance
- Smart auto-channel selection reduces noise and interference
- Bandwidth expansion provides richer spectrum resources; variable bandwidth options meet diverse application scenarios
- Supports Point-to-Point (P2P) and Point-to-Multipoint (P2MP) networking modes
- Mitigates hidden node performance degradation, maximizing wireless efficiency
- Frequency extension function allows flexible frequency selection to avoid co-channel and adjacent-channel interference
- Channel width selection enables avoiding overlapping spectrum usage
- Intelligent QoS optimizes multimedia transmission, prioritizing voice and video
- Supports Wireless Controller (AC) management for centralized remote configuration and upgrade
- IP66-rated enclosure for robust environmental protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HT5-Dish |
| CPU | QCA9563 + QCA9886 + QCA8334 |
| Flash | SPI NOR 16 MB |
| DDR | DDR2-128 MB |
| 5G Operating Frequency | 5.150 GHz – 5.850 GHz |
| 5G WiFi Protocol | 802.11 a/n/ac Wave2 |
| Maximum Data Rate | 900 Mbps |
| Antenna | Integrated 25 dBi butterfly antenna |
| 5G EVM | 802.11a_54M: ≤ -25 dB 802.11n_MCS7: ≤ -28 dB 802.11AC_MCS9: ≤ -32 dB |
| Frequency Accuracy (ppm) | ±20 ppm |
| WAN Interface | 1 × 10/100/1000M adaptive WAN port, supports 24–48V PoE |
| LAN Interface | 1 × 10/100/1000M adaptive LAN port |
| Power Supply | PoE 24–48V, DC 12–48V |
| Maximum Power Consumption | < 15 W |
| RST Button | Long press 10s to restore factory default |
| Status LEDs | SYS, WAN, LAN, 5G WiFi, 4 × Signal LEDs |
| Dimensions | Φ466 mm × 260 mm |
| Weight | TBD |
| Operating Environment | Normal: -20°C to 55°C Extreme: -30°C to 70°C Storage: -40°C to 70°C Humidity: 5%–95% (non-condensing) |
| Protection Level | IP65 |
| ESD | Air ±8 kV, Contact ±4 kV |
| Surge Protection | Common mode 4 kV, Differential mode 2 kV |
