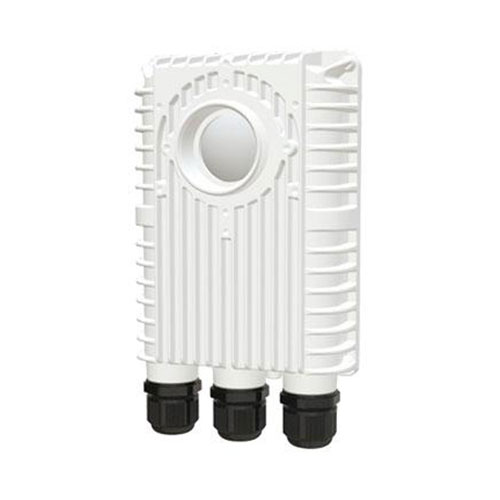

10-30KM High-Bandwidth Microwave Device HTX5
The HTX5 is a new-generation, carrier-grade, medium-to-long-range outdoor high-bandwidth wireless broadband access and transmission product compliant with the 802.11ax protocol. It incorporates built-in proprietary protocol wireless technology, which integrates industry-leading core technologies including MIMO, BeamForming, and TDMA. This product features long transmission distance, high throughput, and strong anti-interference capability.
Product description
Product Overview
The TX5 is a next-generation 802.11AX telecom-grade, medium- to long-range outdoor high-bandwidth wireless broadband access and transmission device. It incorporates proprietary wireless protocol technology, combining industry-leading features such as MIMO, Beamforming, and TDMA.
The TX5 offers long transmission distances, high throughput, and strong anti-interference performance, achieving a maximum throughput of 1.7 Gbps. Its innovative design enhances compatibility with Wi-Fi protocols, ensuring high-throughput wireless transmission, reliable point-to-point performance, and excellent interference resistance.
By pairing with antennas of different power levels, the TX5 can achieve high-speed wireless transmission over 10–30 km, making it suitable for applications including base station communication, forest fire monitoring, port transmission, and oilfield surveillance. The device features a professional outdoor housing, rated IP66 for dust and water protection, and operates reliably in extreme temperatures from -40°C to +70°C.
Key Features
- Enhanced Anti-Interference: Proprietary protocol improves wireless resilience for superior transmission performance
- TDMA Polling: Avoids signal collisions to increase transmission efficiency
- Intelligent Rate Control: Adapts to varying environments, optimizing bandwidth performance
- Automatic ACK Timeout Adjustment: Enables long-distance transmission performance
- Smart Automatic Channel Selection: Reduces interference and noise for stable connections
- Frequency Band Expansion: Provides richer spectrum resources; variable bandwidth selection meets different scenario needs
- Flexible Networking: Supports both point-to-point (PTP) and point-to-multipoint (PTMP) modes
- Hidden Terminal Mitigation: Maximizes wireless transmission efficiency by eliminating performance drops from hidden terminals
- Channel Frequency Expansion: More frequency options reduce co-channel and adjacent-channel interference
- Channel Width Selection: Adjustable channel width to avoid spectrum overlap
- Intelligent QoS: Multimedia optimization ensures stable voice and video transmission
- Centralized Management: Supports wireless controller (AC) for remote configuration and firmware updates
- Rugged Design: IP66-rated for dust and water resistance, suitable for harsh outdoor environments
