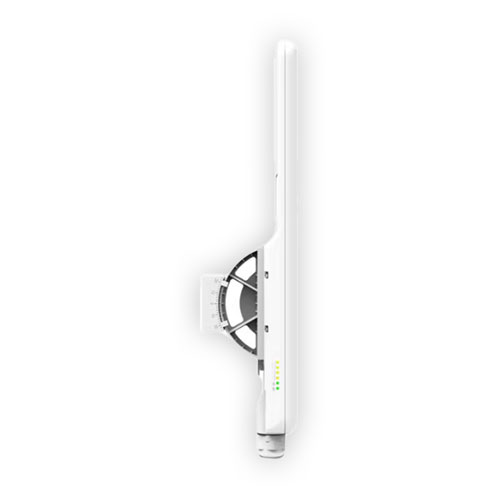

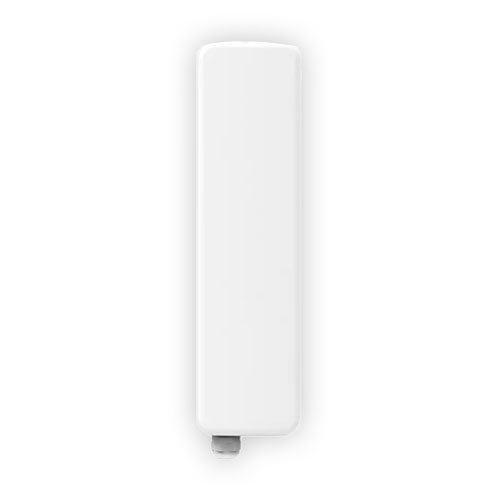

Outdoor Wireless Base Station HT5-90N
The HT5-90N is a high-performance, high-stability 5GHz base station product. It integrates an advanced 802.11n wireless core and a MIMO 2x2 high-gain dual-polarized directional antenna internally. The device’s operating system has rich functions and strong wireless communication optimization capabilities, and is backward compatible with the 802.11a standard.
Product description
Product Overview:
The HT5-90N is a high-performance, highly stable 5GHz base station product. It integrates the advanced 802.11n wireless core and MIMO 2x2 high-gain dual-polarized directional antenna for enhanced signal strength and reliability. The device’s operating system is feature-rich and offers excellent wireless communication optimization capabilities, while remaining downward compatible with the 802.11a standard.
With IPOLL (Intelligent Dynamic Polling Protocol), the HT5-90N provides strong anti-interference ability, ensuring stable access to 64-bit users even in areas with severe interference. The device features dual firmware images, allowing for remote software upgrades without disruption, even if a power failure occurs during the upgrade process.

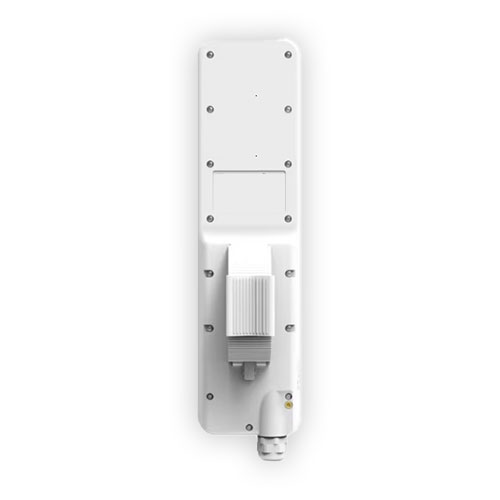

The HT5-90N is housed in a durable polycarbonate plastic case with UV inhibitors, ensuring it can withstand prolonged outdoor exposure without cracking or damage. The product’s design and testing meet IP-66 protection standards, with resistance to vibration, humidity, salt mist, and surge impacts. This ensures exceptional reliability and keeps it at the forefront of the industry. Additionally, the device includes a grounding lug and POE power ground protection to prevent lightning strikes. The mounting bracket can be installed on walls or poles, with up to 25° downward tilt adjustment.
Key Features:
- Advanced 5GHz Base Station: Utilizes 802.11n wireless core and MIMO 2x2 technology for high stability and performance.
- High Gain Dual-Polarized Antenna: Integrates high-gain, dual-polarized directional antennas to ensure superior signal strength and reliability.
- IPOLL (Intelligent Dynamic Polling Protocol): Strong anti-interference capabilities, allowing up to 64-bit users to stably access the base station even in interference-heavy areas.
- Dual Firmware Image: Ensures that even if a power failure occurs during remote software upgrades, the device can still reboot successfully.
- Durable Polycarbonate Plastic Housing: UV-resistant, ensuring it will not crack or degrade under prolonged exposure to sunlight.
- IP-66 Protection: Meets industrial IP-66 standards for dust and water resistance, with resistance to vibration, humidity, salt mist, and surge impacts.
- Grounding Protection: Includes a grounding lug and POE power ground protection to prevent damage from lightning strikes.
- Flexible Mounting: Can be wall-mounted or pole-mounted, with up to 25° downward tilt adjustment.
- Operating System: IPOLL Protocol for smart dynamic polling. Dual Firmware Images for fail-safe upgrades. HTML5-based GUI for modern, user-friendly interface. 170 Mbps transmission rate and 80,000 PPS for robust performance. IPv6 Support for future-proof networking. Compatible with WNMS for seamless network management.
Wireless Specifications
| Specification | Value |
|---|---|
| WLAN Standard | IEEE 802.11 a/n, IPOLL |
| Transmission Mode | IPOLL MIMO 2x2 |
| Wireless Band | 5.150 GHz – 5.850 GHz (FCC 5.745 – 5.852 GHz) |
| Transmit Power | Up to 29 dBm |
| Receive Sensitivity | -97 to -75 dBm |
| Channel Bandwidth | 5, 10, 20, 40 MHz |
| Modulation Type | OFDM (64-QAM, 16-QAM, QPSK) |
| Error Correction | FEC, Selective ARQ |
| Duplex Mode | Time Division Duplex (TDD) |
Transmit Power (dBm)
| Data Rate (Mbps) | Transmit Power (dBm) |
|---|---|
| 15 Mbps | 29 |
| 30 Mbps | 29 |
| 45 Mbps | 29 |
| 60 Mbps | 29 |
| 90 Mbps | 28 |
| 120 Mbps | 28 |
| 135 Mbps | 27 |
| 150 Mbps | 25 |
| 6 Mbps | 29 |
| 9 Mbps | 29 |
| 12 Mbps | 29 |
| 18 Mbps | 29 |
| 24 Mbps | 29 |
| 36 Mbps | 28 |
| 48 Mbps | 28 |
| 54 Mbps | 27 |
Receive Sensitivity (dBm)
| Data Rate (Mbps) | Receive Sensitivity (dBm) |
|---|---|
| 15 Mbps | -97 |
| 30 Mbps | -95 |
| 45 Mbps | -93 |
| 60 Mbps | -88 |
| 90 Mbps | -85 |
| 120 Mbps | -81 |
| 135 Mbps | -79 |
| 150 Mbps | -77 |
| 6 Mbps | -94 |
| 9 Mbps | -92 |
| 12 Mbps | -89 |
| 18 Mbps | -85 |
| 24 Mbps | -82 |
| 36 Mbps | -77 |
| 48 Mbps | -75 |
| 54 Mbps | -73 |
Data Rates (Mbps)
| Standard | Data Rates |
|---|---|
| 802.11n | 300, 270, 240, 180, 120, 90, 60, 30 Mbps |
| 802.11a | 54, 48, 36, 24, 18, 12, 9, 6 Mbps |
