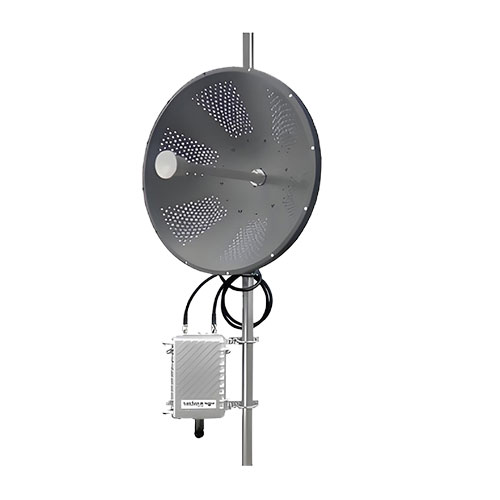

20-30KM Wireless Transmission HT5000-11AC

The HT5000-11AC is an outdoor ultra-long-range wireless transmission device with a speed of 900Mbps. It has a built-in 32dBi high-gain directional antenna, complies with the IEEE 802.11a/n/ac protocols, and is suitable for wireless networking and wireless coverage.

GET A FREE QUOTE

Category: Long distance wireless transmission

Product description

Product Features

Product Introduction

HT5000-11AC is a high-performance, long-range outdoor wireless transmission device, offering speeds of up to 900Mbps. It features a built-in 32dBi high-gain directional antenna and complies with the IEEE802.11a/n/ac standards, making it suitable for wireless networking and coverage. With a dustproof, waterproof, and lightning-proof enclosure and antenna, the HT5000-11AC is designed to operate in various outdoor environments. It also supports POE power supply and AI intelligent QoS flow control for easy management. It provides obstruction-free transmission over 20-30 km in open spaces.

Key Features

Private Protocol for Enhanced Interference Resistance: The proprietary protocol strengthens the device’s resistance to interference, ensuring a better transmission environment.
TDMA Polling: Avoids signal collision during transmission, improving overall performance.
Intelligent Rate Control: Adapts to different environments, enhancing bandwidth performance.
Automatic ACK Timeout Adjustment: Optimizes long-distance transmission performance.
Automatic Channel Selection: Automatically selects the best channel to avoid noise interference, improving signal quality.
Extended Frequency Band: More available frequency resources for flexible bandwidth selection, meeting the needs of different scenarios.
Flexible Networking Modes: Supports both point-to-point and point-to-multipoint networking, providing greater flexibility.
Hidden Terminal Mitigation: Eliminates performance degradation caused by hidden terminals, maximizing wireless transmission efficiency.
Frequency (Channel) Expansion: Allows the selection of more frequency options to avoid interference from neighboring channels.
Channel Width Adjustment: Enables the adjustment of channel width to avoid overlapping frequency spectrum areas.
Smart QoS (Quality of Service): Wireless multimedia optimization technology ensures the stability of voice and video transmission.
Wireless Controller (AC) Management: Supports remote centralized configuration and firmware upgrade management.
IP66 Protection Rating: Designed to withstand a variety of environmental conditions.

Hardware Configuration

Item	Specification
Main Chip	QCA9563 + QCA9882
Memory	64MB DDR2 RAM
Flash	16MB
Device Interface	1 x 10/100/1000M Adaptive Ethernet Port
	1 x Reset Button (Restores to Factory Defaults)
Antenna	18dBi
Power Consumption	≤ 10W
Max Power	500W
Transmission Power	Up to 29 dBm (varies by region)
Power Adapter	24V POE
Dimensions	305 x 305 x 25mm (Length x Height x Width)

RF Specifications

Item	Specification
Transmission Speed	900Mbps
Wireless Frequency Band	5 GHz: 4.910-6.090 GHz (FCC: 5.150-5.250, 5.725-5.850 GHz)
WLAN Standard	IEEE 802.11a/n/ac iPoll3
Transmission Mode	MIMO 2x2
Reception Sensitivity	-95 to -75 dBm (varies by modulation)
Channel Bandwidth	5, 10, 20, 40, 80 MHz
Modulation	802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
	802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data Rate	802.11ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
	802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Error Correction	FEC, LDPC
Duplex Mode	Time Division Duplex (TDD)
