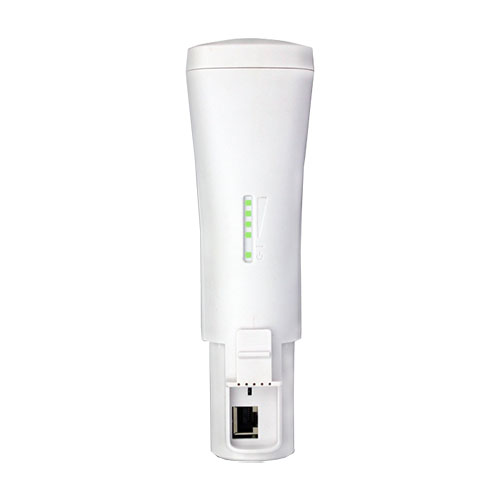

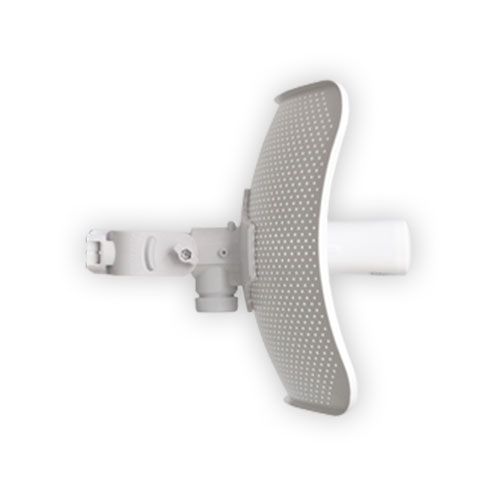

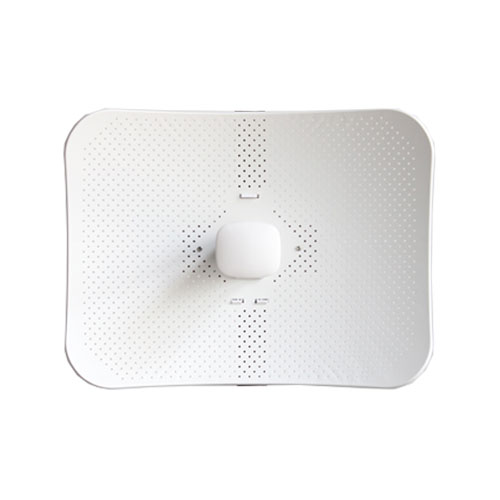

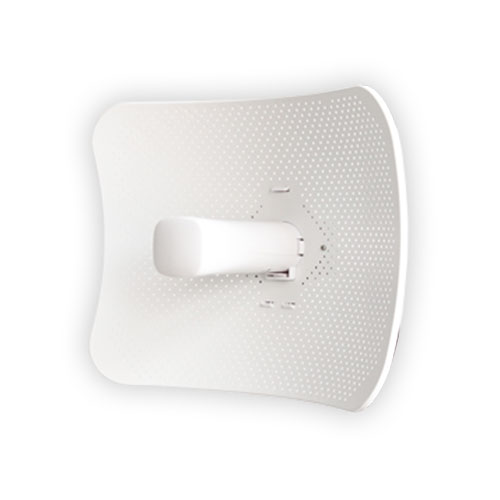

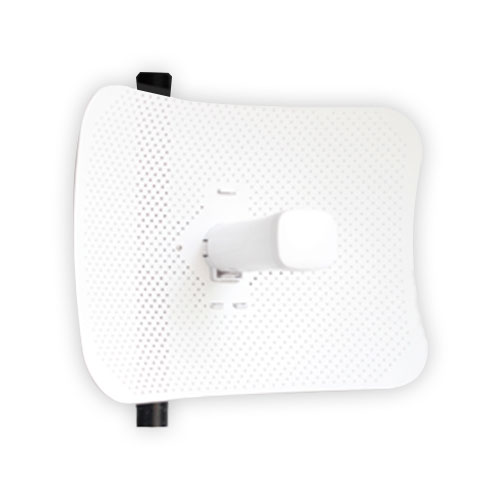

10KM Wireless Transmission HT1000-11AN-23
The HT1000-11AN-23 is an industrial-grade, long-range outdoor wireless broadband access and transmission product with powerful performance. It adopts an advanced design integrating 2*2 MIMO technology and complies with the 802.11a/n 5G standards.
Product description
Product Features
Product Introduction
HT1000-11AN-23 integrates advanced design with 2x2 MIMO technology, IEEE 802.11a/n 5G industrial-grade, long-range, outdoor wireless broadband access and transmission capabilities. It incorporates proprietary wireless technology from Zhongxun Huitong, which combines industry-leading core technologies such as MIMO, BeamForming, TDMA, and more. This technology offers long transmission distances, high throughput, and strong anti-interference capabilities. It supports high-speed wireless transmission up to 10km and is widely used in scenarios like base station communication, forest fire monitoring, port transmission, and oil field monitoring. The professional outdoor casing design adapts to various harsh environments, providing IP66-level dust and water protection, and ensures stable operation even in extreme temperatures ranging from -40°C to 70°C.
Product Features
- Enhanced Wireless Interference Resistance: Proprietary protocol boosts resistance to wireless interference, providing a superior transmission environment.
- TDMA Polling: Avoids signal transmission conflicts, improving transmission performance.
- Intelligent Rate Control: Adapts to various environments, enhancing bandwidth performance.
- Automatic ACK Timeout Adjustment: Ensures long-distance transmission performance.
- Automatic Channel Selection: Provides better performance by eliminating noise interference.
- Bandwidth Extension: Utilizes a wider range of frequency resources; adjustable bandwidth options to suit different scenarios.
- Point-to-Point and Point-to-Multipoint Networking: Flexible networking options.
- Maximizes Wireless Transmission Efficiency: Eliminates the impact of hidden terminals that cause performance degradation.
- Frequency (Channel) Expansion Function: Provides more frequency options to eliminate co-channel and adjacent-channel interference.
- Channel Width Selection: Adjusts channel width to avoid overlapping frequency bands.
- Intelligent QoS: Optimizes wireless multimedia performance, prioritizing stable transmission of voice and video.
- Support for Wireless Controller (AC) Management: Allows remote centralized configuration and upgrade management.
- IP66 Protection Rating: Ensures reliability in various environmental conditions
Technical Specifications
| Item | Specification |
|---|---|
| Main Chip | QC9342 |
| Memory | 64 MB |
| Flash Memory | 16 MB |
| Wireless Frequency Band | 5 GHz: 5.150-5.850 GHz (FCC 5.150-5.250 GHz & 5.725-5.850 GHz) |
| Transmission Mode | MIMO 2x2 |
| Data Rate | 802.11n @ 40 MHz: 300, 270, 240, 180, 120, 90, 60, 30 Mbps |
| 802.11n @ 20 MHz: 144, 130, 115, 86, 57, 43, 28, 14 Mbps | |
| Modulation Type | 802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) |
| Receive Sensitivity | -95 to -75 dBm (depending on modulation type) |
| Channel Bandwidth | 5/10/20/40 MHz |
| Transmit Power | Up to 30 dBm (varies by region) |
| Antenna Type | Integrated dual-polarization directional parabolic antenna |
| Antenna Gain | 23 dBi |
| Wired Interface | 10/100 Base-T, RJ45 |
| Wireless Modes | Access Point (Auto WDS), Access Point (iPoll), Station (WDS, iPoll), Station (APP NAT) |
| Wireless Technology | Intelligent site polling, automatic channel selection, automatic modulation selection, automatic transmit power control (ATPC) |
| Wireless Security | WPA/WPA2 Personal Encryption, WPA/WPA2 Enterprise Encryption, WACL, User Isolation |
| Wireless QoS | iPoll implements 4-queue prioritization |
| Network Mode | Bridge IPv4 Routing, IPv6 Routing |
| Network Technology | No NAT routing, NAT routing, VLAN |
| WAN Protocol | Static IP, DHCP client, PPPoE client |
| Management | HTTP(S) GUI, SSH, SNMP Read, WNMS, Telnet |
| Tools | Site Survey, Connection Test, Antenna Calibration |
| Services | DHCP Service, SNMP Service, NTP Client, Routing Trace, Ping Watchdog |
| Power Supply | 24V DC POE (24V POE adapter included) |
| Power Consumption | 5W |
| Protection | IP45 Protection Rating, corrosion-resistant, dustproof, rainproof, sunproof, salt spray resistant |
