HT58-N-AC 20km Wireless Bridge with Fiber Optic Port
The HT58-N-AC is an industrial-grade, long-range outdoor wireless broadband access and transmission product with powerful performance. It adopts an advanced design integrating 2*2 MIMO technology and complies with the 802.11a/n/ac standards.
Product description
Product Description
HT58-N-AC adopts advanced design with integrated 2x2 MIMO technology, making it an industrial-grade, long-range, and high-performance outdoor wireless broadband access and transmission product. It is equipped with private wireless protocol technology developed by Zhongxun Huitong, combining industry-leading core technologies, including MIMO, BeamForming, TDMA, etc. This technology provides long transmission distances, high throughput, and strong anti-interference capabilities. The product supports high-speed wireless transmission up to 20 km, widely used in base station communications, forest fire prevention, port transmission, oilfield monitoring, and other scenarios. Its professional outdoor housing design ensures it works in various harsh environments and provides IP67-rated dust and waterproof protection, capable of stable operation even in extreme temperatures ranging from -40°C to 70°C.
Product Features
- Private Protocol Support: Enhances wireless anti-interference capabilities, providing an excellent transmission environment.
- TDMA Polling: Avoids signal transmission conflicts, improving transmission performance.
- Intelligent Rate Control: Adapts to various environments, improving bandwidth performance.
- Automatic ACK Timeout Adjustment: Provides excellent long-distance transmission performance.
- Smart Automatic Channel Selection: Improves noise immunity and overall performance.
- Frequency Band Expansion: Expands frequency resources for more efficient utilization. Variable bandwidth selection for different scenarios.
- Point-to-Point and Point-to-Multipoint Networking: More flexible networking modes.
- Eliminates Hidden Terminal Effects: Maximizes wireless transmission efficiency.
- Frequency (Channel) Expansion: Selects more frequencies to avoid interference from co-channel and adjacent channels.
- Channel Width Selection: Adjusts the channel width to avoid overlapping spectrum usage.
- Smart QoS Wireless Multimedia Optimization: Prioritizes the stability of voice and video transmission.
- Wireless Controller (AC) Management: Supports remote centralized configuration and upgrade management.
- Protection Level: IP67 rating, adaptable to various environments.
Specifications
| Item | Specification |
|---|---|
| Model | HT58-N-AC |
| CPU | QCA9563 + QCA9886 + QCA8334 |
| Flash | SPI NOR 16MB |
| DDR | DDR2-128MB |
| 5G Operating Band | 5.150GHz ~ 5.850GHz |
| 5G WIFI Protocol | 802.11 a/n/ac Wave2 |
| Max Rate | 900Mbps |

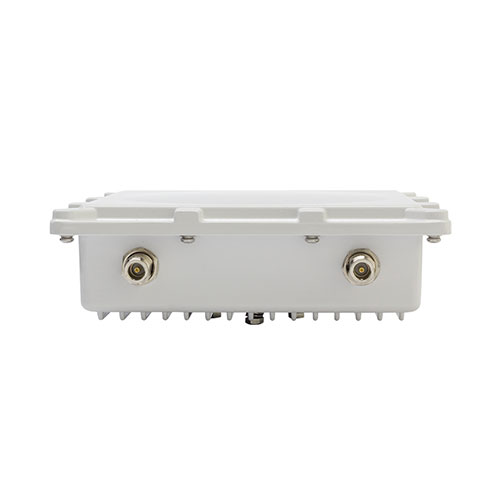

| Antenna | 2 N-F connectors (external threads, internal holes) |
| 5G Transmission Power | 802.11a 54M: 21±2dBm, 6M: 24±2dBm |
| 802.11n HT20 MCS7: 20±2dBm, MCS0: 23±2dBm | |
| 802.11n HT40 MCS7: 19±2dBm, MCS0: 22±2dBm | |
| 802.11AC MCS9: 18±2dBm, MCS0: 21±2dBm | |
| 5G Receiving Sensitivity | 802.11a 54M: -72dBm, 6M: -92dBm |
| 802.11n HT20 MCS7: -70dBm, MCS0: -89dBm | |
| 802.11n HT40 MCS7: -68dBm, MCS0: -87dBm | |
| 802.11AC MCS9: -58dBm, MCS0: -85dBm | |
| 5G EVM | 802.11a 54M: ≤-25dB, 802.11n MCS7: ≤-28dB, 802.11AC MCS9: ≤-32dB |
| Frequency Deviation (ppm) | ±20ppm |
| WAN Interface | 1 x 10/100/1000M adaptive WAN port, supports 24-48V POE |
| LAN Interface | 1 x 10/100/1000M adaptive SFP fiber interface |
| Power Supply | PoE 24V~48V, DC 12~48V |
| Max Power Consumption | < 15W |
| Reset Button | Press and hold for 10 seconds to restore factory defaults |
| Status Indicators | SYS light, WAN port light, LAN port light, 5G WIFI light, 4 signal lights |
| Product Dimensions | 212mm x 212mm x 64mm |
| Weight | 3.9kg |
| Operating Environment | Operating Temperature: -30°C to 60°C, Extreme Temperature: -40°C to 70°C |
| Storage Temperature: -40°C to 70°C, Humidity: 5% ~ 95% (Non-condensing) | |
| Protection Level | IP67 |
| ESD | Air discharge ±8K, Contact discharge ±4K |
| Surge | Common Mode 4K, Differential Mode 2K |
