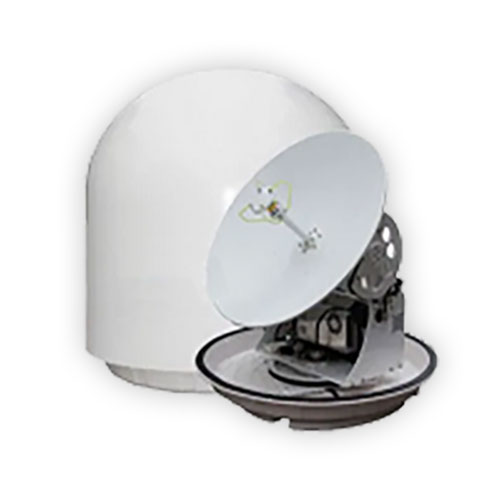

Long-Distance Transmission of Mobile Satellite Communication Antenna Stabilization Platform Transcei
utomatic tracking of fixed (upgradable to dynamic) targets；Real-time horizontal and pitch attitude adjustment；360° continuous rotation at 60° per second；High gain and high link bandwidth；Lightweight and miniaturized design；GPS and Beidou dual-satellite system； Fully independent patented intellectual property rights, with customizable development
Category: Long distance wireless transmission
Product description
Product Features
- Fully Automatic Target Tracking (Upgradeable to Dynamic)
- Real-time Horizontal and Pitch Attitude Adjustment
- 360° Continuous Rotation, 60°/Second
- High Gain, High Link Bandwidth
- Lightweight and Compact Design
- GPS and Beidou Dual Satellite System
- Fully Autonomous Patented Intellectual Property, Customizable Development
System Features
- 5Hz High-speed Positioning and Attitude Calculation
- 360° Continuous Horizontal Rotation, Automatic Pitch Adjustment
- High-speed Stepper Motor System, Horizontal Angle Accuracy of 0.24°
- Rotation Speed: 60°/Second Adjustable, Automatic Acceleration and Stop Operation
- No Stepping or Over-stepping during High-speed Rotation
- GPS and Beidou Dual Satellite System with Drift Optimization Algorithm, More Accurate and Reliable
- Supports First-time Installation with Electronic Compass Self-calibration and Geomagnetic Declination Calibration
- Adaptable for 5.8GHz Shipboard, Aircraft, and Vehicle Communication Systems, High Link Bandwidth, Long Communication Distance
- Plug-and-play, Easy Installation and Debugging
- IP66 All-weather Protection
- Expandable Standard RS232 Serial Port Interface
- Real-time Data Output via RS-232 and TELNET Terminals, Supports Manual Remote Control and Attitude Adjustment
- Supports Multi-point Ground Station Automatic Tracking
- Custom System Development Supported

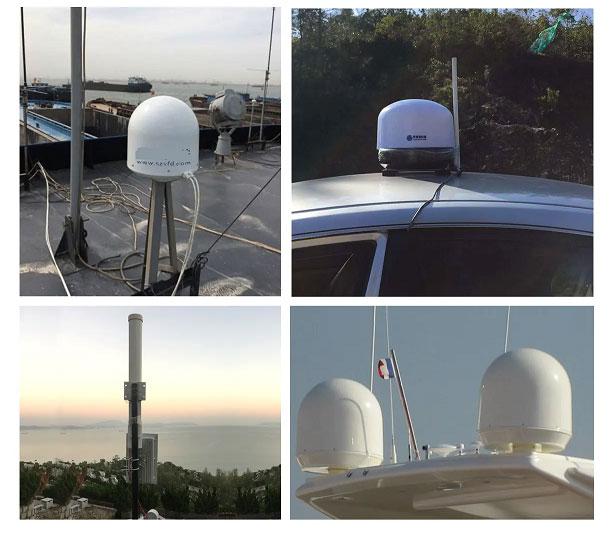

Main Application Areas
- Shipboard, Aircraft, and Vehicle High-speed Network and Video Wireless Transmission
- Maritime Patrol Boats, Coast Guard, Law Enforcement Vessels, High-speed Local Area Network (LAN) for Boats
- Real-time Video Wireless Transmission for Aircraft and Vehicles
- Special Operation Vehicle Communication Networks or Video Wireless Transmission in Mining, Nature Reserves, Oilfields, Oil Wells, Docks, and Ports
- Public Security, Safety, and Emergency Response for Traffic Incident Sites
- Coastal Defense, Maritime Affairs, Water Conservancy, Civil Defense, Search and Rescue, Emergency Response Command
- High-altitude Communication Balloons, Drones, Helicopter Aerial Photography Transmission
Technical Parameters
RF Section
| Item | Specification |
|---|---|
| Working Frequency | 4900MHz ~ 5850MHz |
| Transmit Power | 27dBm |
| Antenna Gain | 16dBi / 23dBi / 30dBi (depending on mobile size) |
| Channel Bandwidth | 10/20/30/40/80Hz |
| Bandwidth Rate | 300Mbps or 866Mbps |
| Ethernet Mode | 1 x 100Mbps Adaptive, or 1 x 1000Mbps Adaptive Ethernet Port |
| Ethernet Type | 8-pin IP67 Aviation Connector |
| Modulation Type | QPSK / 16-QAM / 64-QAM / supports TDMA |
| Device Power Supply | 24V / 48V POE 1A |
| Setup & Management | Web / Telnet / SSH Multiple Methods |
| Note | Device parameters may vary depending on customer-specific frequency devices |
Mechanical, Control, and Positioning
| Item | Specification |
|---|---|
| Horizontal Rotation | 360° Continuous Rotation |
| Pitch Adjustment | Automatic Pitch Adjustment |
| Rotation Speed | 60°/Second (Adjustable) |
| Horizontal Accuracy | 0.24° |
| Orientation Calibration | Manual Orientation Calibration Supported |
| Geomagnetic Deviation | Pre-setable |
| Compass Calibration | Auto-calibration after one full round of navigation |
| Timed Self-check | Can be set to run once per day |
| GPS/BD | Dual GPS and Beidou System Positioning |
| GPS Frequency | 1 ~ 10Hz Adjustable |
| Status Data | Real-time display of all status data |
Debug Ports
- Supports Network, USB Telnet Remote Terminal
- Debugging Tools: Computer/Smartphone with Telnet Terminal Software
Pre-set Parameters
- Opposite Station Longitude/Latitude/Relative Altitude
Installation and Dimensions
| Item | Specification |
|---|---|
| Working Voltage | AC 220V @ 50Hz, includes 24V POE Adapter |
| Device Power Consumption | 25W / 50W |
| Protection Level | IP66 |
| Dimensions | LS-D360: Diameter 38cm, Height 33cm |
| LS-D500: Diameter 50cm, Height 52cm | |
| Weight | LS-D360: <5kg, LS-D500: 8kg |
| Storage Temperature | -45 ~ +75°C |
| Operating Temperature | -25 ~ +50°C |
| Fixed Installation | Customizable brackets based on vehicle or ship installation requirements |
