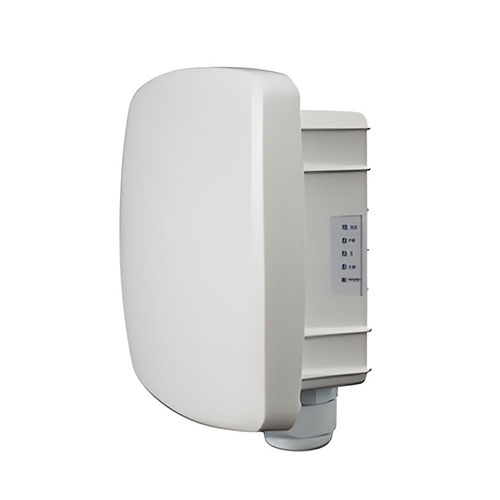

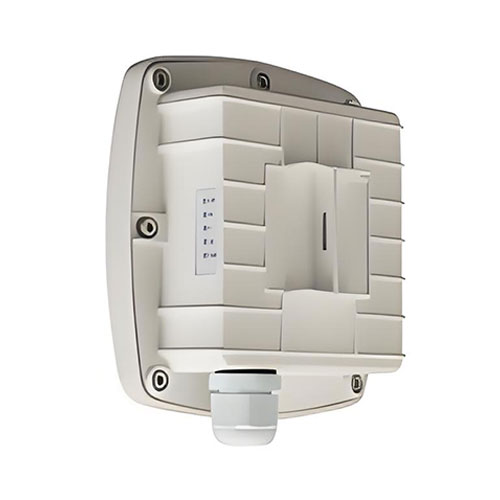

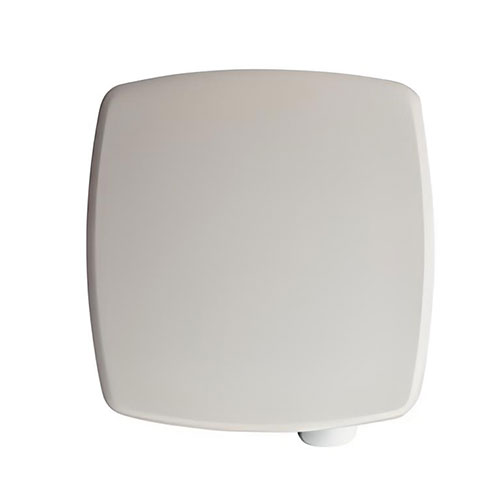

3-5KM Wireless Transmission Base Station HT5800-12H
The HT5800-12H is an outdoor wireless bridge operating in the 5.8GHz frequency band. It complies with the IEEE 802.11a/n standards, features an output power of up to 29dBm, and integrates a high-performance 12dBi MIMO antenna. It can deliver a real-time throughput of over 90Mbps even at distances ranging from several hundred meters to 3 kilometers, enabling smooth transmission of 20 channels of high-definition video.
Category: Long distance wireless transmission
Product description
Product Features
- High Reliability: New components, strict quality control, solid-state capacitors, industrial-grade standards, and long-term stable operation without crashes or restarts.
- Multi-mode: Supports AP, Station, WDS transparent mode, proprietary ipoll2,3 protocol.
- Strong Interference Resistance: Wide frequency range from 4900-6100MHz, narrowband transmission (5/10/20/40MHz), and automatic channel selection.
- High Throughput: Even under low signal conditions, effective transmission is still supported. The software includes built-in wireless link bandwidth testing, no additional tools required.
- Surge and ESD Protection: 6KV ESD protection, ensures stable operation even during thunderstorms.
- Easy Installation and Debugging: Powered via PoE Ethernet cable, supports both Chinese and English interfaces, and features a signal strength indicator on the side.
- Convenient Network Management: Web-based management, allows configuration via smartphone, eliminating the need for computer-based debugging.
- Built-in Spectrum Scan and Analysis: Supports full 5.8GHz frequency band scanning, provides signal strength, frequency points, and channels for easier engineering debugging.
- Multiple Security Measures: Supports WEP encryption, 802.1x, WPA2, MAC address filtering, user isolation, and other security options.
- All-round Protection: Fully sealed design, waterproof, moisture-proof, and dust-proof for extended durability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Processor | Atheros AR9344 PA: Sky5012B*2 |
| Memory | 64 MB DDR2, 8 MB FLASH |
| Network Interface | 1 x 10/100M Ethernet port |
| Transmission Rate | 802.11a: 6,9,11,12,18,24,36,48,54 Mbps |
| 802.11n: 300,270,240,180,120,90,60,30 Mbps | |
| Modulation Technology | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
| MIMO-OFDM (11n): MCS 0-23 | |
| Modulation Type | 11a: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps |
| 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM | |
| Data Encryption | WPA-PSK/WPA2-PSK, WPA/WPA2, WEP |
| Indicators | 5 LEDs: 1 Power, 2 LAN, 3 5G RSSI signal lights |
| Reset Method | Button reset switch (M22 waterproof cap side) |
| Power Supply | Passive Ethernet Power (4, 5 positive; 7, 8 negative), 12-24V POE |
| Enclosure Material | Base: ADC die-cast aluminum with oil spraying process, Cover: Engineering-grade PC |
| Antenna | 5100-5900MHz, 12dBi Dual-polarized MIMO Copper array, V40±5º, H60±5º |
| VSWR | ≤2.0 |
| Front-back ratio | ≥25dB |
| Dimensions | 138 x 138 x 65 mm |
| Weight | 520g |
| Operating Temperature | -40°C to 65°C |
| Power Consumption | Max 5W |
| Operating Humidity | 5% to 95% (non-condensing) |
| Installation Method | Pole mount (clamp style) |
| Packaging | Kraft paper box1, Size: 180 x 160 x 70 mm, Desktop type, 24V POE1, Metal clamp*1 |
| Package Weight | 0.75kg |
